Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
Type A |
*B |
Type B |
| *1 |

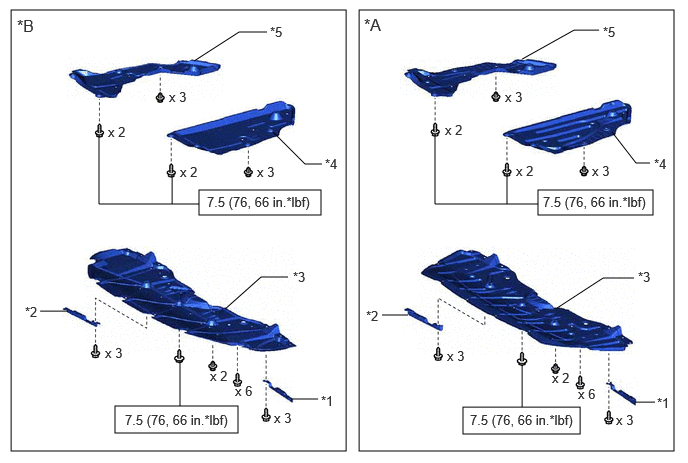

FRONT WHEEL OPENING EXTENSION PAD LH |
*2 |
FRONT WHEEL OPENING EXTENSION PAD RH |
| *3 |
NO. 1 ENGINE UNDER COVER |
*4 |
NO. 3 ENGINE UNDER COVER |
| *5 |
NO. 2 ENGINE UNDER COVER |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
V-BANK COVER SUB-ASSEMBLY |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

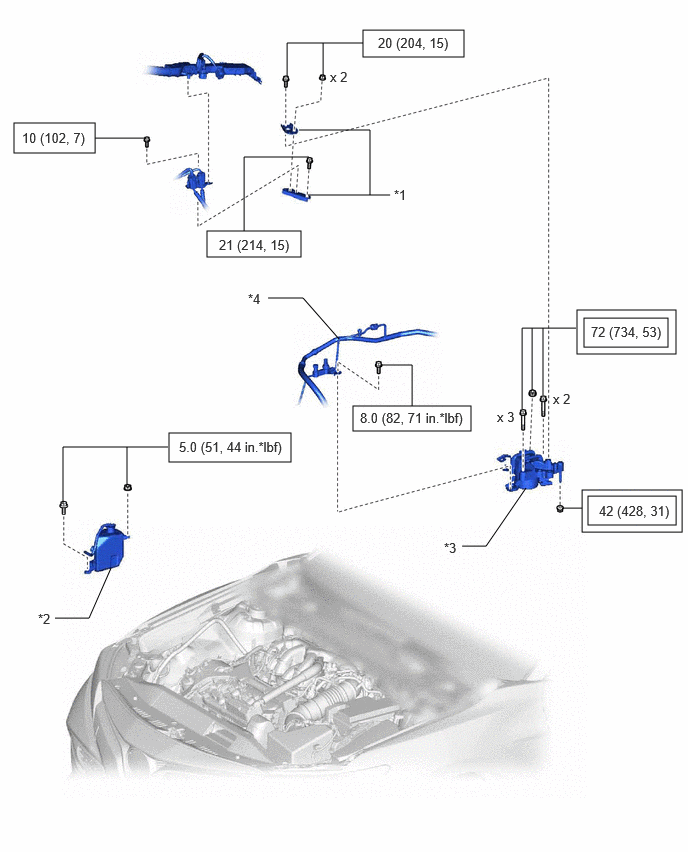

| *1 |
NO. 2 ENGINE MOUNTING STAY RH |
*2 |
RADIATOR RESERVE TANK ASSEMBLY |
| *3 |
ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH |
*4 |
SUCTION HOSE SUB-ASSEMBLY |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

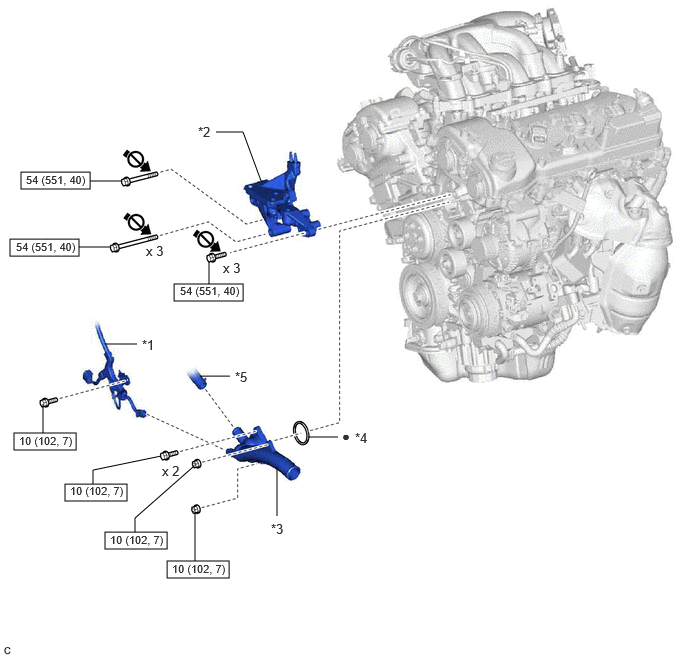

| *1 |
ENGINE WIRE |
*2 |
FRONT NO. 1 ENGINE MOUNTING BRACKET LH |
| *3 |
WATER INLET WITH THERMOSTAT SUB-ASSEMBLY |
*4 |
GASKET |
| *5 |
WATER BY-PASS HOSE |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
 |
Do not apply lubricants to the threaded parts |
- |
- |
