Components [06/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

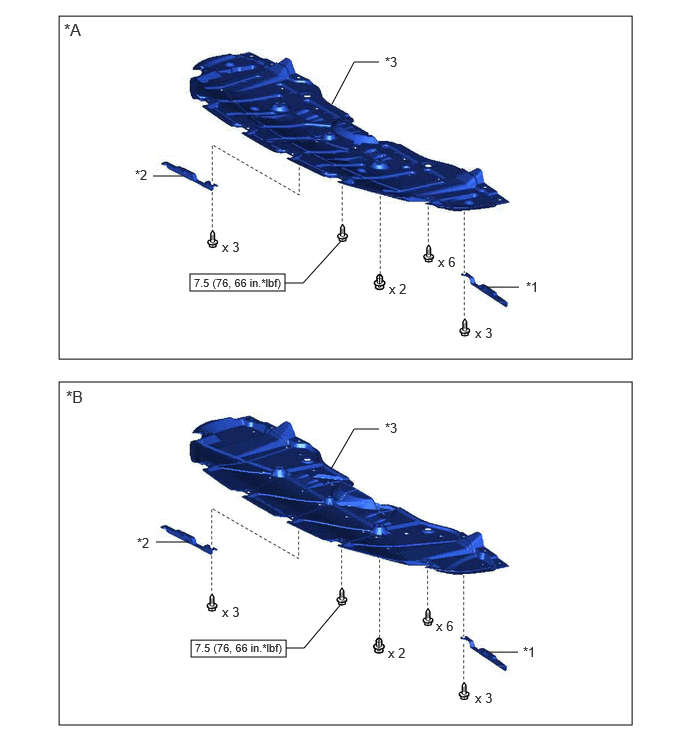

Fig 1: Radiator Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	Type A	*B	Type B
*1	FRONT WHEEL OPENING EXTENSION PAD LH	*2	FRONT WHEEL OPENING EXTENSION PAD RH
*3	NO. 1 ENGINE UNDER COVER	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

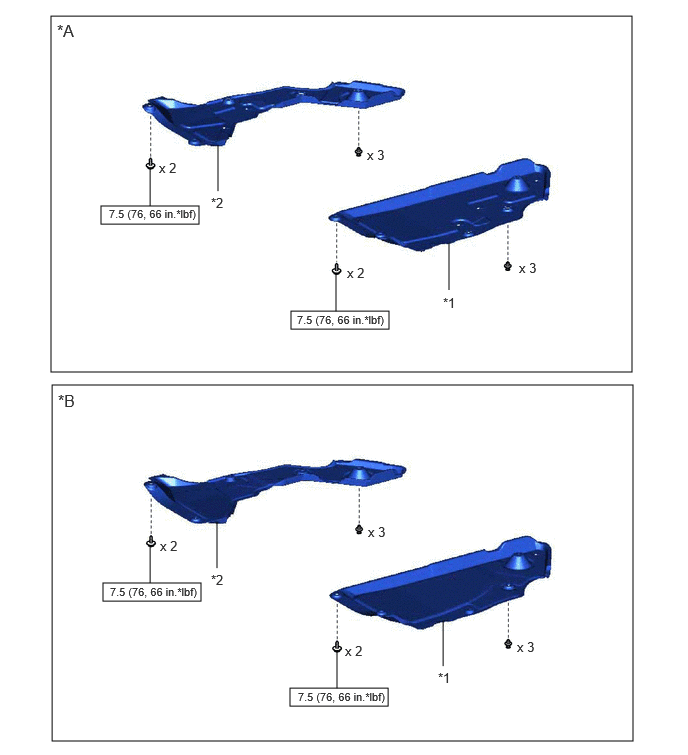

Fig 2: Radiator Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	Type A	*B	Type B
*1	NO. 3 ENGINE UNDER COVER	*2	NO. 2 ENGINE UNDER COVER
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 3: Radiator Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT BUMPER ENERGY ABSORBER	*2	FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
*3	NO. 2 FRONT BUMPER MOUNTING BRACKET	*4	CLIP
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

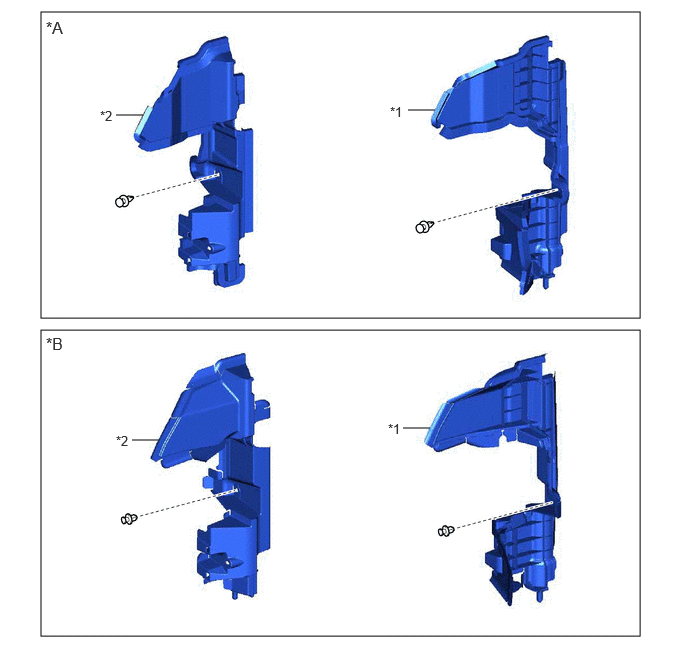

Fig 4: Radiator Replacement Components (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	Type A	*B	Type B
*1	NO. 1 RADIATOR AIR GUIDE LH	*2	NO. 1 RADIATOR AIR GUIDE RH

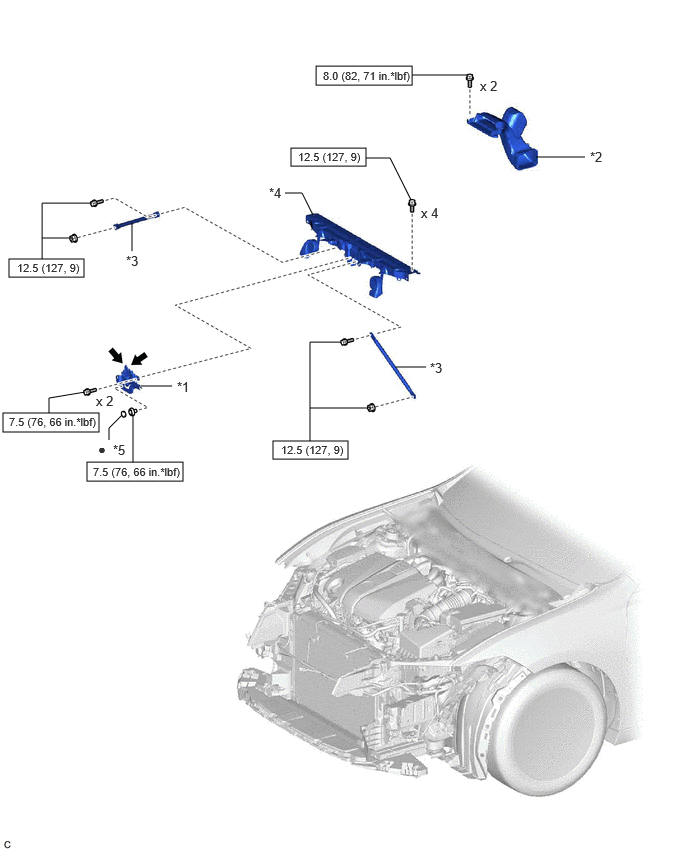

Fig 5: Radiator Replacement Components With Torque Specifications (5 Of 6)

*1	HOOD LOCK ASSEMBLY	*2	INLET AIR CLEANER ASSEMBLY
*3	UPPER RADIATOR MOUNTING BRACKET	*4	UPPER RADIATOR SUPPORT SUB-ASSEMBLY
*5	HOOD LOCK NUT CAP	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease	-	-

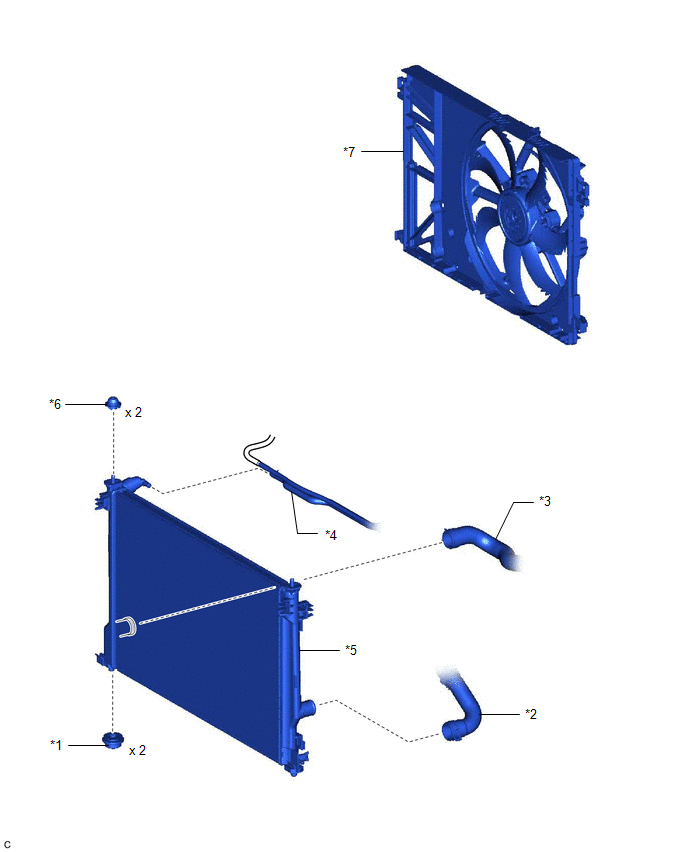

Fig 6: Radiator Replacement Components (6 Of 6)

*1	LOWER RADIATOR SUPPORT	*2	NO. 1 RADIATOR HOSE
*3	NO. 2 RADIATOR HOSE	*4	NO. 5 WATER BY-PASS HOSE
*5	RADIATOR ASSEMBLY	*6	RADIATOR SUPPORT CUSHION
*7	FAN WITH MOTOR ASSEMBLY	-	-
