Components [06/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Canister Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	Type A	*B	Type B
*1	FRONT FLOOR COVER RH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 2: Canister Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	Type A	*B	Type B
*1	FRONT FLOOR COVER LH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 3: Canister Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CENTER FLOOR CROSSMEMBER BRACE	*2	FRONT CENTER FLOOR BRACE
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 4: Canister Replacement Components With Torque Specifications (4 Of 5)

*1	CENTER EXHAUST PIPE ASSEMBLY	*2	EXHAUST PIPE SUPPORT
*3	GASKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

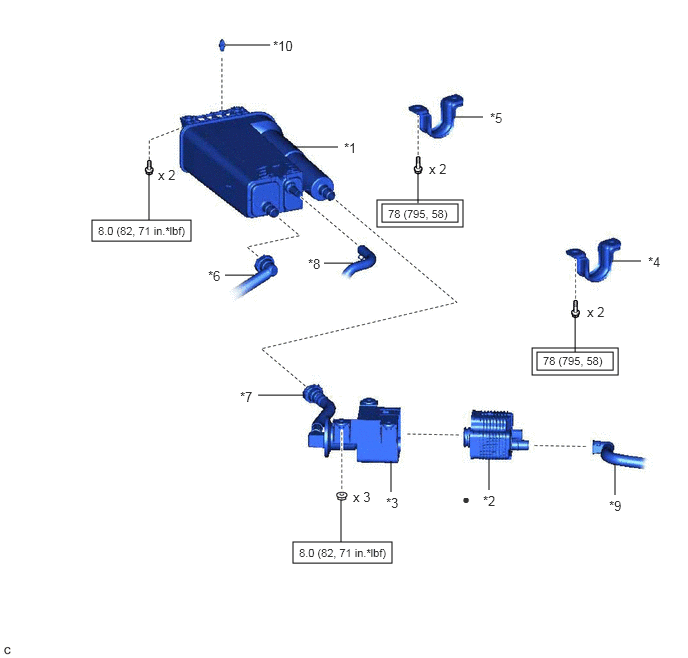

Fig 5: Canister Replacement Components With Torque Specifications (5 Of 5)

*1	CANISTER (CHARCOAL CANISTER ASSEMBLY)	*2	LEAK DETECTION PUMP SUB-ASSEMBLY
*3	NO. 2 CHARCOAL CANISTER SUB-ASSEMBLY	*4	REAR NO. 1 STABILIZER BAR BRACKET LH
*5	REAR NO. 1 STABILIZER BAR BRACKET RH	*6	FUEL TANK VENT HOSE
*7	VENT LINE HOSE	*8	PURGE LINE HOSE
*9	AIR LINE TUBE	*10	CLIP
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	-	-
