Parts Location [06/2018 - ]: Illustration

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

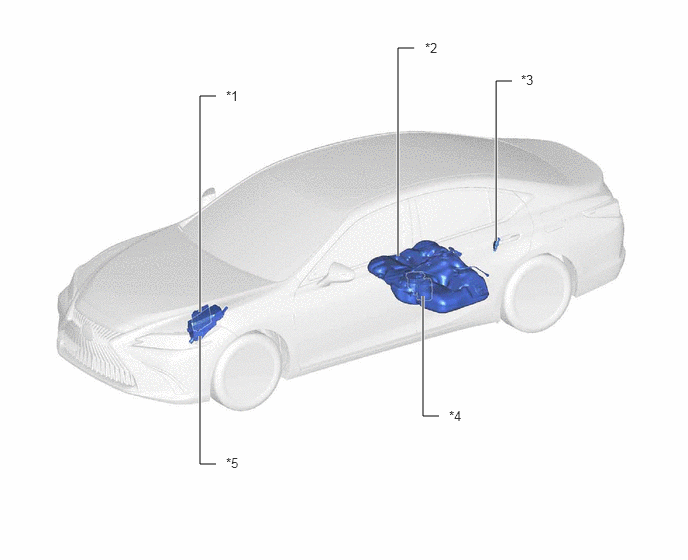

*1	ECM	*2	FUEL TANK ASSEMBLY
*3	FUEL PUMP CONTROL ECU	*4	FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - FUEL PUMP (for Low Pressure) - FUEL SENDER GAUGE ASSEMBLY - FUEL MAIN VALVE ASSEMBLY (for Low Pressure) - FUEL MAIN VALVE ASSEMBLY (for High Pressure)
*5	NO. 1 ENGINE ROOM RELAY BLOCK ASSEMBLY AND NO. 1 ENGINE ROOM JUNCTION BLOCK ASSEMBLY - EFI-MAIN NO. 2 RELAY - IG2 NO. 1 RELAY - INJ FUSE	-	-

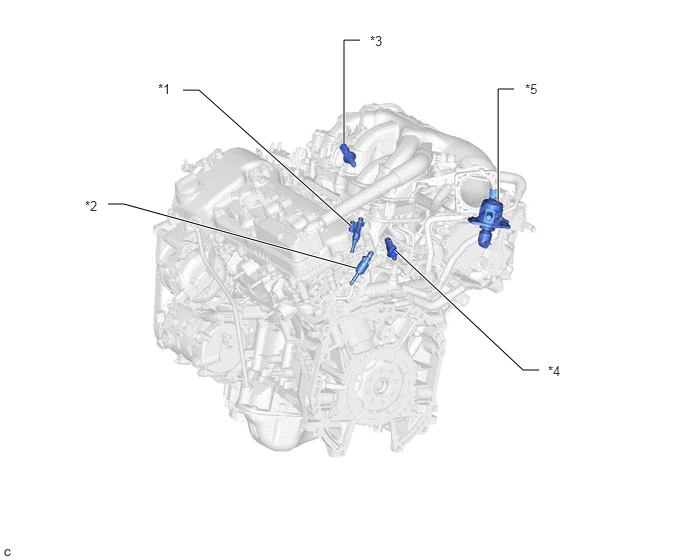

*1	PORT FUEL INJECTOR ASSEMBLY	*2	DIRECT FUEL INJECTOR ASSEMBLY
*3	FUEL PRESSURE SENSOR (FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY) (for Low Pressure)	*4	FUEL PRESSURE SENSOR (FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY LH) (for High Pressure)
*5	FUEL PUMP ASSEMBLY (for High Pressure)	-	-
