Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

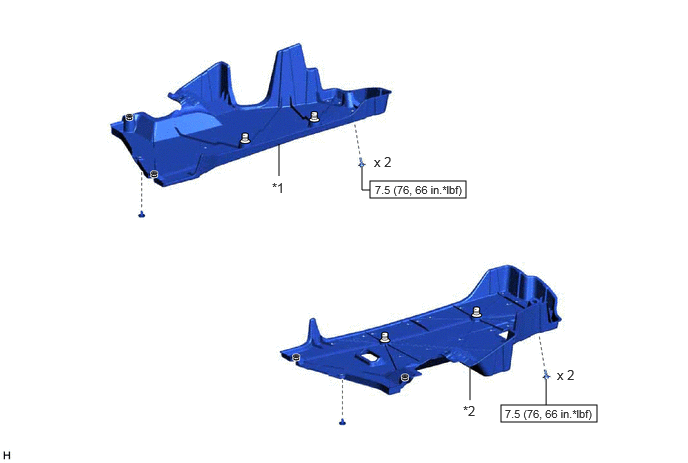

| *1 |
NO. 1 FLOOR UNDER COVER |
*2 |
NO. 2 FLOOR UNDER COVER |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
for TMC Made |
*B |
w/ Fuel Outlet Valve Assembly |
| *C |
w/o Fuel Outlet Valve Assembly |
- |
- |

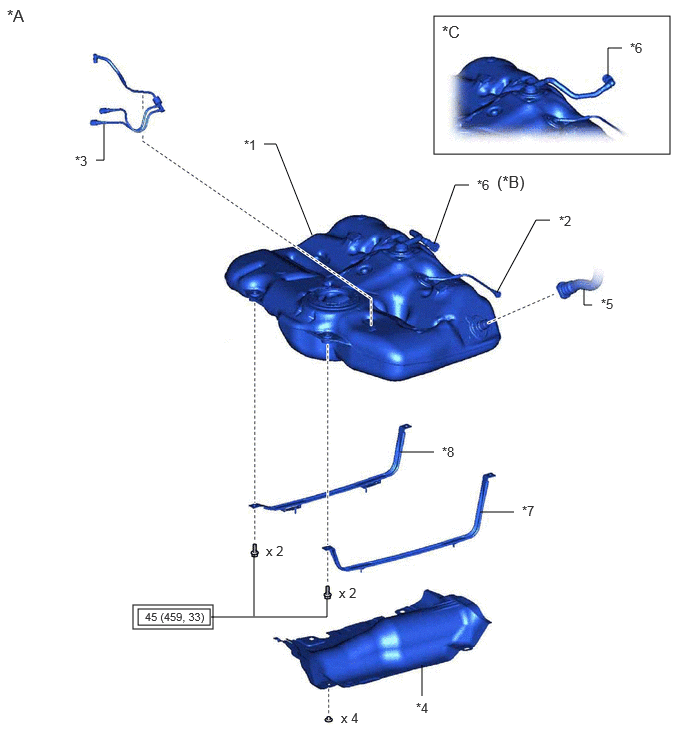

| *1 |
FUEL TANK ASSEMBLY |
*2 |
FUEL TANK BREATHER TUBE SUB-ASSEMBLY |
| *3 |
FUEL TANK MAIN TUBE SUB-ASSEMBLY |
*4 |
NO. 1 FUEL TANK PROTECTOR |
| *5 |
FUEL TANK TO FILLER PIPE HOSE |
*6 |
FUEL CUT OFF VALVE WITH TUBE ASSEMBLY |
| *7 |
NO. 1 FUEL TANK BAND SUB-ASSEMBLY LH |
*8 |
NO. 1 FUEL TANK BAND SUB-ASSEMBLY RH |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

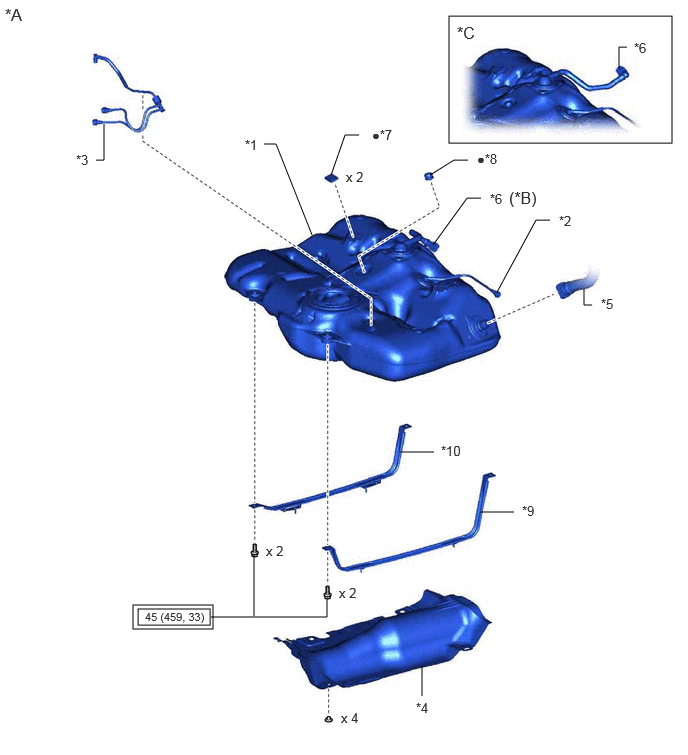

| *A |
for TMMK Made |
*B |
w/ Fuel Outlet Valve Assembly |
| *C |
w/o Fuel Outlet Valve Assembly |
- |
- |
| *1 |
FUEL TANK ASSEMBLY |
*2 |
FUEL TANK BREATHER TUBE SUB-ASSEMBLY |
| *3 |
FUEL TANK MAIN TUBE SUB-ASSEMBLY |
*4 |
NO. 1 FUEL TANK PROTECTOR |
| *5 |
FUEL TANK TO FILLER PIPE HOSE |
*6 |
FUEL CUT OFF VALVE WITH TUBE ASSEMBLY |
| *7 |
NO. 1 FUEL TANK CUSHION |
*8 |
NO. 2 FUEL TANK CUSHION |
| *9 |
NO. 1 FUEL TANK BAND SUB-ASSEMBLY LH |
*10 |
NO. 1 FUEL TANK BAND SUB-ASSEMBLY RH |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
• |
Non-reusable part |
