Removal [06/2018 - 08/2021]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
Refer to REMOVAL [06/2018 - 08/2021]

REMOVE FUEL SENDER GAUGE ASSEMBLY

Disconnect the fuel sender gauge assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the 2 clamps to disconnect the wire harness from the fuel suction plate sub-assembly.
NOTE:
Do not damage the wire harness.

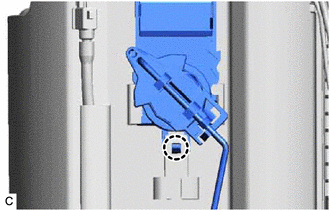

Disengage the claw to remove the fuel sender gauge assembly from the fuel sub-tank.

NOTE:

Be careful not to bend the arm of the fuel sender gauge assembly.
