Components [06/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

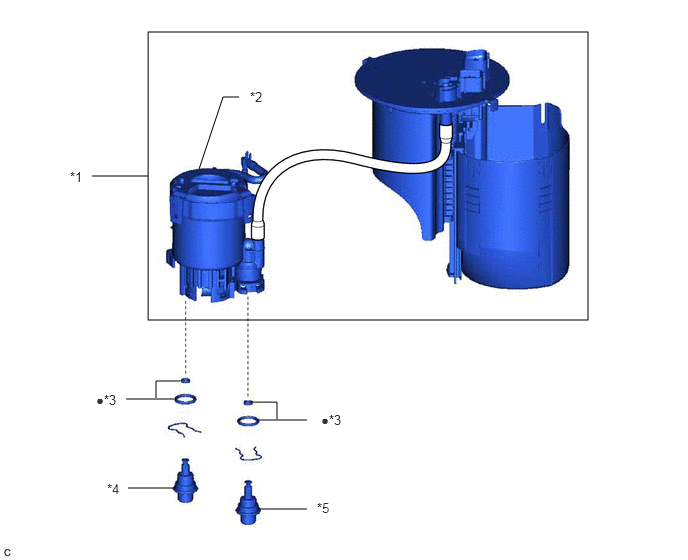

Fig 1: Fuel Main Valve Replacement Components
GTY798840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FUEL SUCTION PLATE SUB-ASSEMBLY *2 FUEL FILTER
*3 O-RING *4 FUEL MAIN VALVE ASSEMBLY (for Low Pressure)
*5 FUEL MAIN VALVE ASSEMBLY (for High Pressure) - -
• Non-reusable part - -
