Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

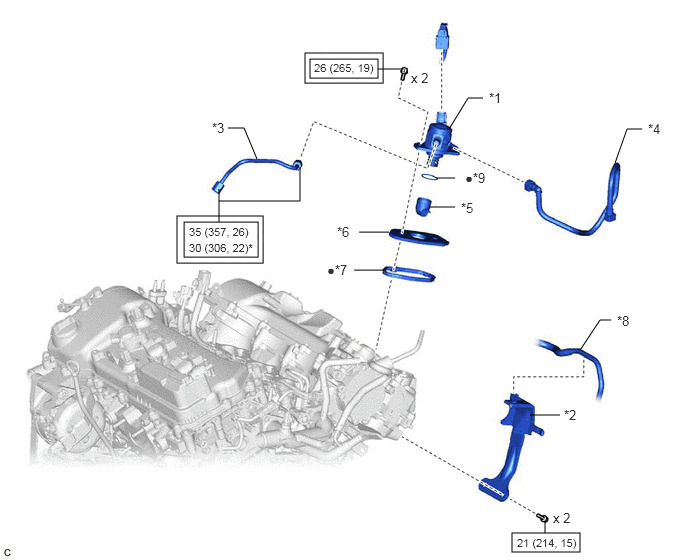

| *1 | FUEL PUMP ASSEMBLY | *2 | FUEL PUMP PROTECTOR |
| *3 | NO. 1 FUEL PIPE SUB-ASSEMBLY | *4 | NO. 2 FUEL TUBE SUB-ASSEMBLY |
| *5 | FUEL PUMP LIFTER ASSEMBLY | *6 | FUEL PUMP LIFTER GUIDE |
| *7 | FUEL PUMP SPACER GASKET | *8 | FUEL TUBE SUB-ASSEMBLY |
| *9 | O-RING | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with a union nut wrench | • | Non-reusable part |
