Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

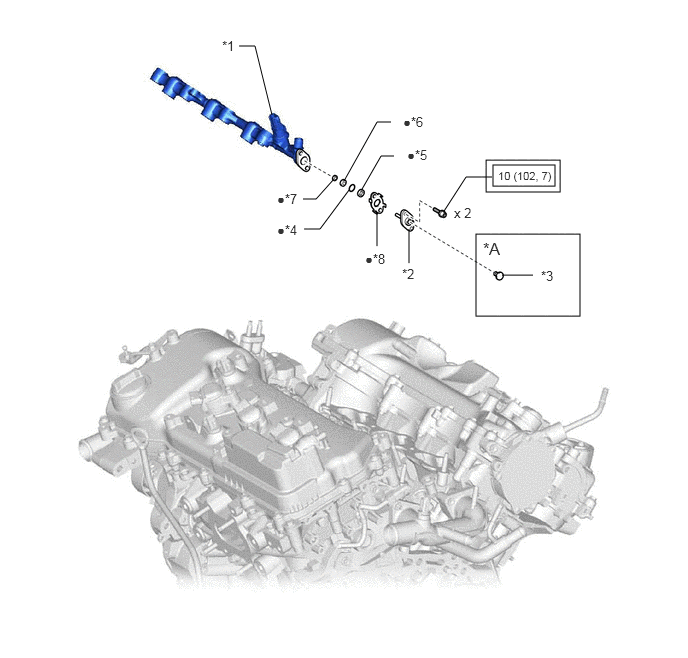

| *A | w/ Dust Cap | - | - |
| *1 | FUEL PRESSURE SENSOR (FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY LH) | *2 | FUEL PIPE PLUG SUB-ASSEMBLY |
| *3 | DUST CAP SUB-ASSEMBLY | *4 | O-RING |
| *5 | NO. 1 FUEL INJECTOR BACK-UP RING | *6 | NO. 2 FUEL INJECTOR BACK-UP RING |
| *7 | NO. 3 FUEL INJECTOR BACK-UP RING | *8 | GASKET |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
