Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

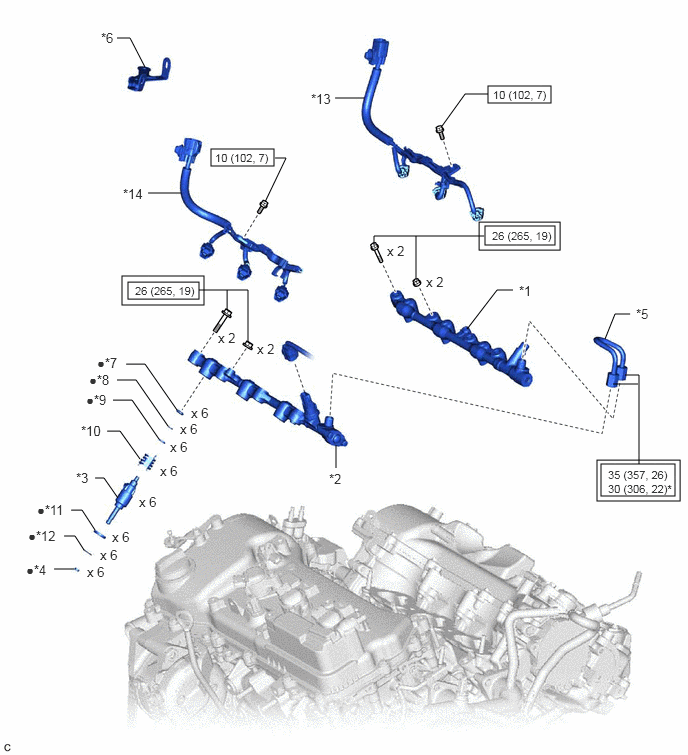

| *1 | FUEL DELIVERY PIPE RH | *2 | FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY LH |
| *3 | DIRECT FUEL INJECTOR ASSEMBLY | *4 | FUEL INJECTOR SEAL |
| *5 | NO. 2 FUEL PIPE SUB-ASSEMBLY | *6 | WIRE HARNESS CLAMP BRACKET |
| *7 | NO. 3 FUEL INJECTOR BACK-UP RING | *8 | O-RING |
| *9 | NO. 1 FUEL INJECTOR BACK-UP RING | *10 | NOZZLE HOLDER CLAMP |
| *11 | INJECTOR VIBRATION INSULATOR | *12 | C-RING |
| *13 | NO. 6 ENGINE WIRE | *14 | NO. 7 ENGINE WIRE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with a union nut wrench | • | Non-reusable part |
