Components [06/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

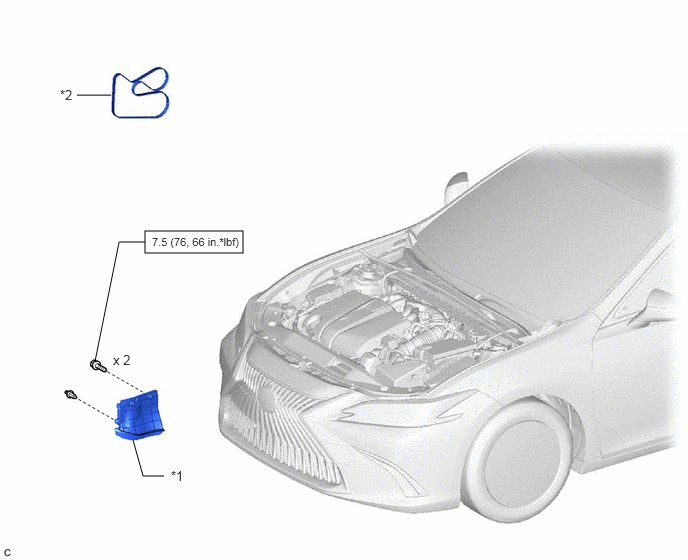

Fig 1: Drive Belt Replacement Components With Torque Specifications

*1	FRONT FENDER APRON SEAL RH	*2	V-RIBBED BELT
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
