Components [08/2021 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
VENTILATION HOSE |
*2 |
PURGE VALVE (PURGE VSV) |
| *3 |
NO. 1 FUEL VAPOR FEED HOSE |
*4 |
NO. 2 SURGE TANK STAY |
| *5 |
INTAKE AIR SURGE TANK ASSEMBLY |
*6 |
AIR SURGE TANK TO INTAKE MANIFOLD GASKET |
| *7 |
VACUUM HOSE SUB-ASSEMBLY |
*8 |
VACUUM HOSE |
| *9 |
NO. 2 AIR TUBE |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
 |
Do not apply lubricants (to the threaded parts) |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

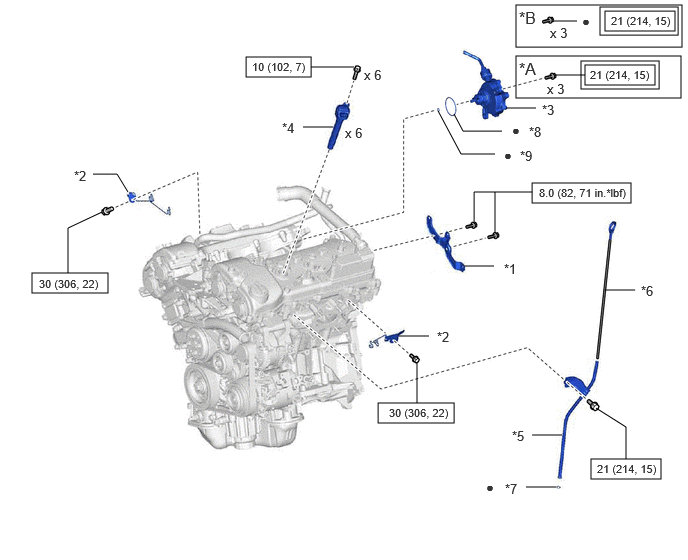

| *A |
Type A |
*B |
Type B |
| *1 |
WATER FILLER BRACKET |
*2 |
WIRE HARNESS CLAMP BRACKET |
| *3 |
VACUUM PUMP ASSEMBLY |
*4 |
IGNITION COIL ASSEMBLY |
| *5 |
ENGINE OIL LEVEL DIPSTICK GUIDE |
*6 |
ENGINE OIL LEVEL DIPSTICK |
| *7 |
ENGINE OIL LEVEL DIPSTICK GUIDE O-RING |
*8 |
NO. 2 O-RING |
| *9 |
NO. 3 O-RING |
- |
- |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
| • |
Non-reusable part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
Type A |
*B |
Type B |

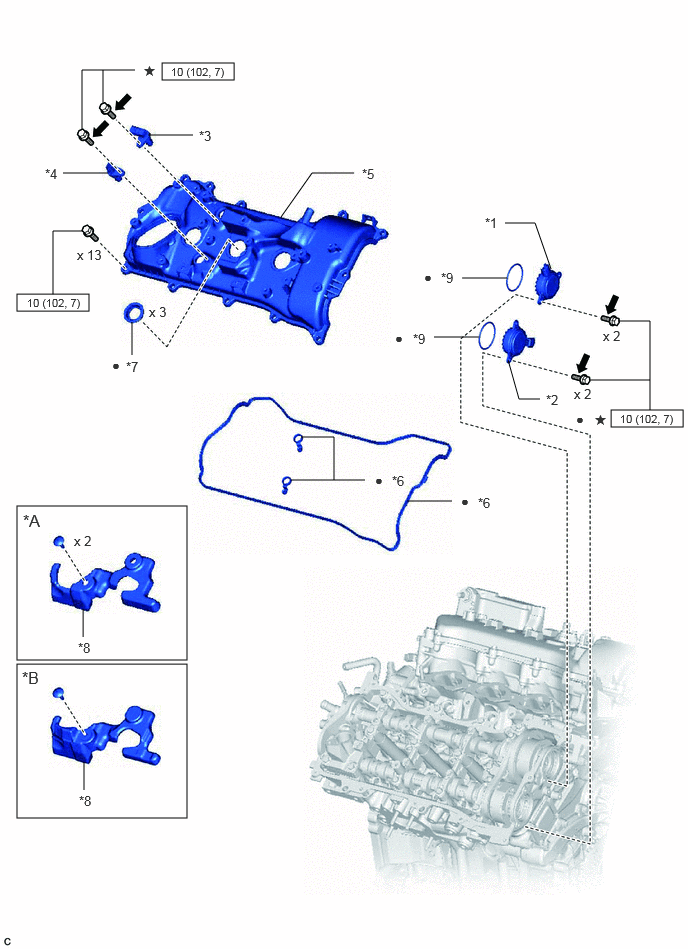

| *1 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1) |
*2 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1) |
| *3 |
VVT SENSOR (for Intake Side of Bank 1) |
*4 |
VVT SENSOR (for Exhaust Side of Bank 1) |
| *5 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
*6 |
CYLINDER HEAD COVER GASKET |
| *7 |
SPARK PLUG TUBE GASKET |
*8 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *9 |
O-RING |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
 |
Adhesive 1324 |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

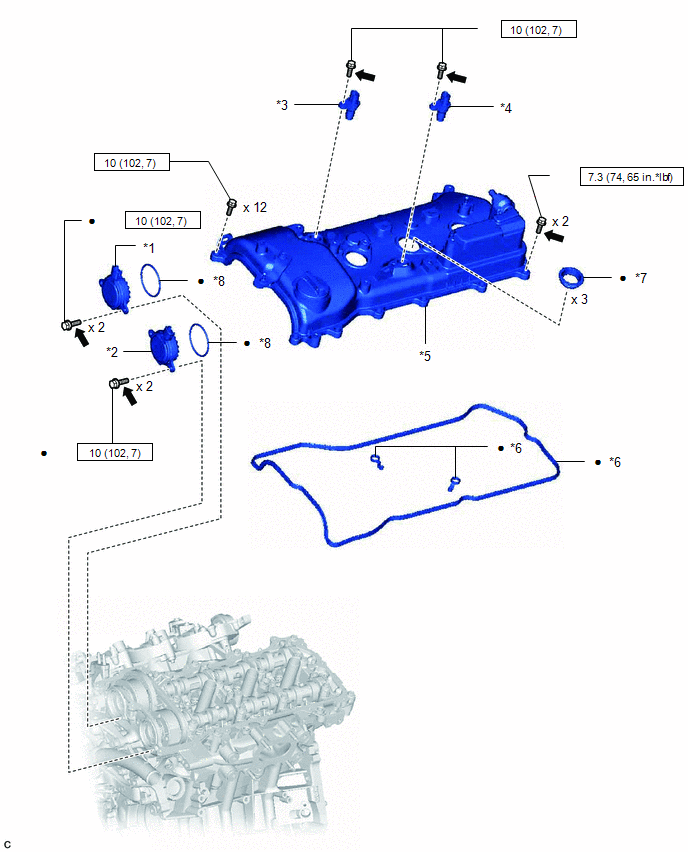

| *1 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2) |
*2 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2) |
| *3 |
VVT SENSOR (for Intake Side of Bank 2) |
*4 |
VVT SENSOR (for Exhaust Side of Bank 2) |
| *5 |
CYLINDER HEAD COVER SUB-ASSEMBLY LH |
*6 |
NO. 2 CYLINDER HEAD COVER GASKET |
| *7 |
SPARK PLUG TUBE GASKET |
*8 |
O-RING |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
Adhesive 1324 |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
CAMSHAFT |
*2 |
NO. 2 CAMSHAFT |
| *3 |
CAMSHAFT BEARING CAP (for Bank 1) |
*4 |
NO. 2 CHAIN TENSIONER ASSEMBLY |
| *5 |
CAMSHAFT TIMING GEAR ASSEMBLY (for Bank 1) |
*6 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY (for Bank 1) |
| *7 |
CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 1) |
*8 |
NO. 2 CHAIN SUB-ASSEMBLY (for Bank 1) |
| *9 |
FUEL PUMP LIFTER HOUSING |
*10 |
CAMSHAFT BEARING CAP OIL HOLE GASKET |
| *11 |
CHAIN SUB-ASSEMBLY (for Bank 1) |
*12 |
NO. 1 CHAIN TENSIONER ASSEMBLY |
| *13 |
TIMING CHAIN COVER GASKET |
*14 |
TIMING CHAIN COVER PLATE |
| *15 |
CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 1) |
*16 |
NO. 1 CAMSHAFT BEARING CAP |
| *17 |
NO. 2 CAMSHAFT BEARING CAP |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
NO. 3 CAMSHAFT SUB-ASSEMBLY |
*2 |
NO. 4 CAMSHAFT SUB-ASSEMBLY |
| *3 |
CAMSHAFT BEARING CAP (for Bank 2) |
*4 |
NO. 3 CHAIN TENSIONER ASSEMBLY |
| *5 |
CAMSHAFT TIMING GEAR ASSEMBLY (for Bank 2) |
*6 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY (for Bank 2) |
| *7 |
CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 2) |
*8 |
NO. 2 CHAIN SUB-ASSEMBLY (for Bank 2) |
| *9 |
CAMSHAFT BEARING CAP OIL HOLE GASKET LH |
*10 |
CHAIN SUB-ASSEMBLY (for Bank 2) |
| *11 |
CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 2) |
*12 |
NO. 3 CAMSHAFT BEARING CAP |
| *13 |
NO. 4 CAMSHAFT BEARING CAP |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
