Parts Location [08/2020 - 09/2022]: Illustration
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

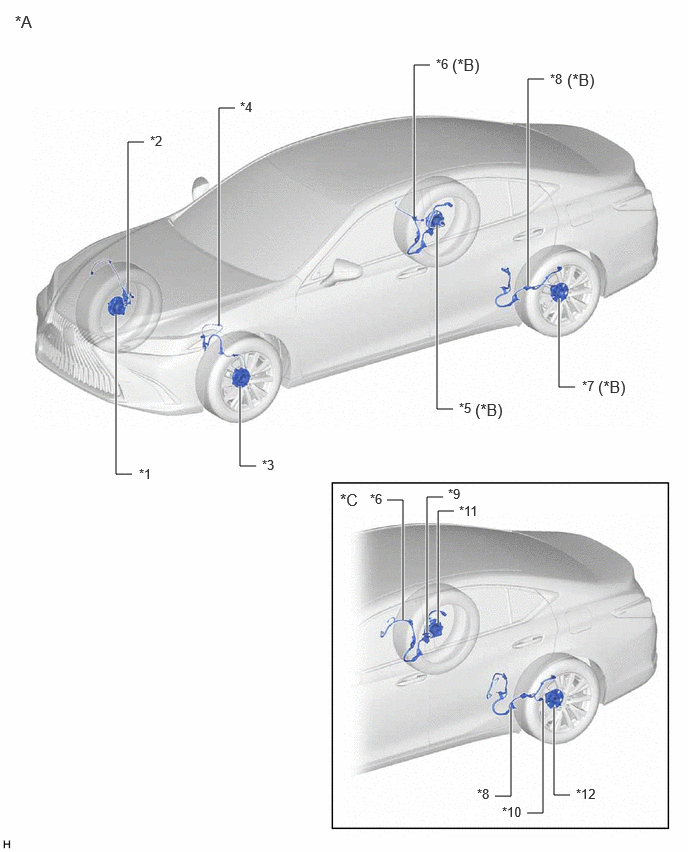

Fig 1: Electronically Controlled Brake System (For Gasoline Model) Replacement Components (1 Of 4) [08/2020 - 09/2022]
| *A | w/o AVS | *B | for 2WD |
| *C | for AWD | - | - |
| *1 | FRONT AXLE HUB SUB-ASSEMBLY RH - FRONT SPEED SENSOR ROTOR RH |
*2 | FRONT SPEED SENSOR RH |
| *3 | FRONT AXLE HUB SUB-ASSEMBLY LH - FRONT SPEED SENSOR ROTOR LH |
*4 | FRONT SPEED SENSOR LH |
| *5 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR RH - REAR SPEED SENSOR ROTOR RH |
*6 | NO. 1 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE RH |
| *7 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR LH - REAR SPEED SENSOR ROTOR LH |
*8 | NO. 2 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE LH |
| *9 | REAR SPEED SENSOR RH | *10 | REAR SPEED SENSOR LH |
| *11 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR ROTOR RH |
*12 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR ROTOR LH |
Fig 1: Electronically Controlled Brake System (For Gasoline Model) Replacement Components (2 Of 4) [08/2020 - 09/2022]
| *A | w/ AVS | - | - |
| *1 | FRONT AXLE HUB SUB-ASSEMBLY RH - FRONT SPEED SENSOR ROTOR RH |
*2 | FRONT SPEED SENSOR RH |
| *3 | FRONT AXLE HUB SUB-ASSEMBLY LH - FRONT SPEED SENSOR ROTOR LH |
*4 | FRONT SPEED SENSOR LH |
| *5 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR RH - REAR SPEED SENSOR ROTOR RH |
*6 | NO. 1 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE RH |
| *7 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR LH - REAR SPEED SENSOR ROTOR LH |
*8 | NO. 2 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE LH |
| *9 | SKID CONTROL SENSOR WIRE WITH SUSPENSION CONTROL RH | *10 | SKID CONTROL SENSOR WIRE WITH SUSPENSION CONTROL LH |
Fig 1: Electronically Controlled Brake System (For Gasoline Model) Replacement Components (3 Of 4) [08/2020 - 09/2022]
| *1 | BRAKE ACTUATOR ASSEMBLY | *2 | VACUUM WARNING SWITCH ASSEMBLY |
| *3 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
*4 | ECM |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ABS NO. 1 FUSE - ABS NO. 2 FUSE |
*6 | RACK AND PINION POWER STEERING GEAR ASSEMBLY - POWER STEERING ECU |
| *7 | SKID CONTROL ECU | - | - |
Fig 1: Electronically Controlled Brake System (For Gasoline Model) Replacement Components (4 Of 4) [08/2020 - 09/2022]
| *1 | BRAKE HOLD SWITCH | *2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | VSC OFF SWITCH | *4 | STEERING ANGLE SENSOR |
| *5 | AIRBAG ECU ASSEMBLY - YAW RATE AND ACCELERATION SENSOR |
*6 | COMBINATION METER ASSEMBLY - ABS WARNING LIGHT - BRAKE WARNING LIGHT / RED (MALFUNCTION) - MULTI-INFORMATION DISPLAY (TRACTION CONTROL TURNED OFF) - VSC OFF INDICATOR LIGHT - SLIP INDICATOR LIGHT - BRAKE HOLD STANDBY INDICATOR LIGHT - BRAKE HOLD OPERATED INDICATOR LIGHT |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 2 FUSE - ECU-DCC NO. 1 FUSE - A/BAG-IG2 FUSE - STOP FUSE |
*8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | DLC3 | *10 | STOP LIGHT CONTROL RELAY |
| *11 | NO. 3 COMBINATION SWITCH ASSEMBLY | - | - |
