Parts Location [06/2018 - ]: Illustration

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

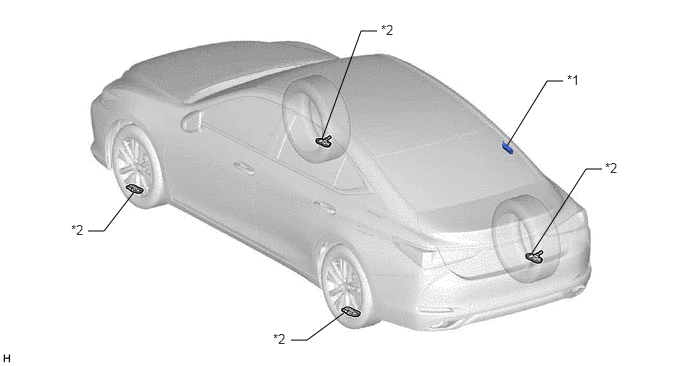

Fig 1: Tire Pressure Warning System Component Location (1 of 3) [06/2018 - ]
GTY828342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TIRE PRESSURE WARNING ECU AND RECEIVER *2 TIRE PRESSURE WARNING VALVE AND TRANSMITTER

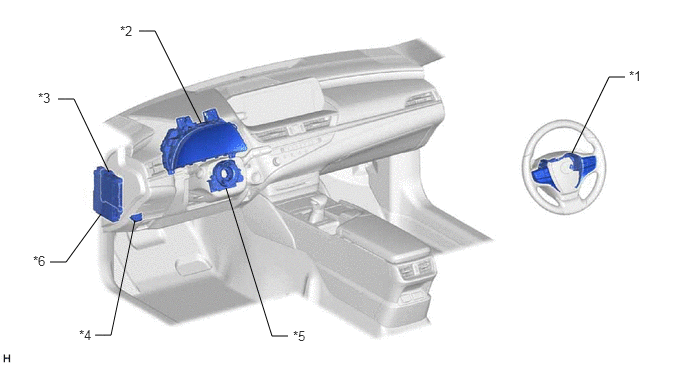

Fig 1: Tire Pressure Warning System Component Location (2 of 3) [06/2018 - ]
GTY798924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 STEERING PAD SWITCH ASSEMBLY *2 COMBINATION METER ASSEMBLY
- TIRE PRESSURE WARNING LIGHT
- MULTI-INFORMATION DISPLAY
*3 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) *4 DLC3
*5 SPIRAL CABLE SUB-ASSEMBLY *6 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG1 NO. 4 FUSE
- ECU-B NO. 2 FUSE

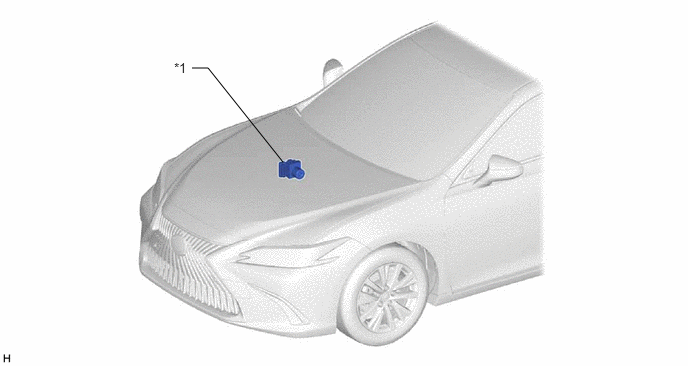

Fig 1: Tire Pressure Warning System Component Location (3 of 3) [06/2018 - ]
GTY831298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) - -
