Parts Location [06/2018 - 08/2021]: Illustration
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

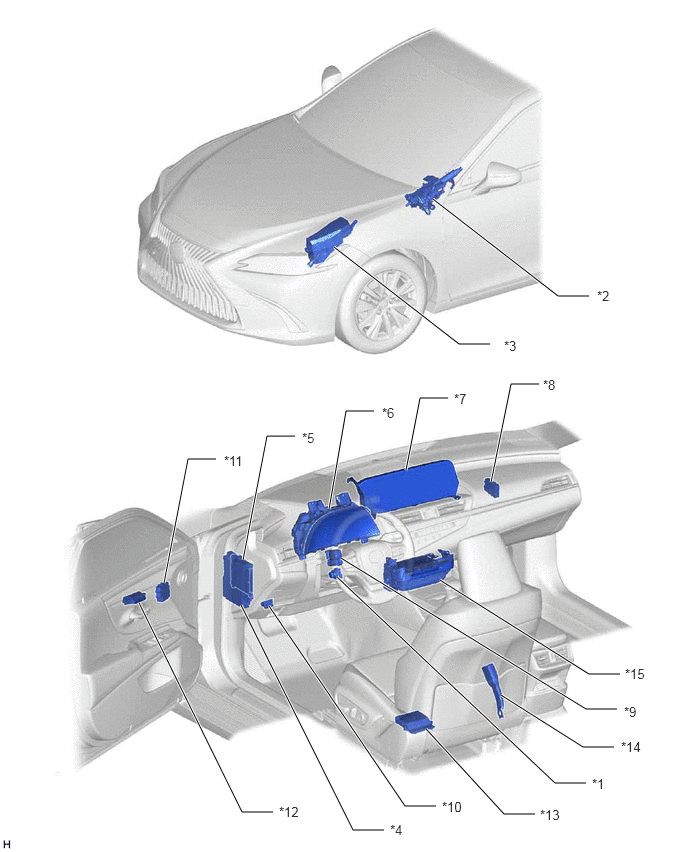

Fig 1: Power Tilt And Power Telescopic Steering Column System (For Gasoline Model) Replacement Components [06/2018 - 08/2021]
| *1 | TILT AND TELESCOPIC SWITCH | *2 | STEERING COLUMN ASSEMBLY - TILT MOTOR - TELESCOPIC MOTOR |
| *3 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - TI&TE FUSE |
*4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-DCC NO. 2 FUSE - ECU-IG1 NO. 4 FUSE |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | COMBINATION METER ASSEMBLY |
| *7 | MULTI-DISPLAY ASSEMBLY | *8 | NETWORK GATEWAY ECU |
| *9 | MULTIPLEX TILT AND TELESCOPIC ECU | *10 | DLC3 |
| *11 | OUTER MIRROR CONTROL ECU ASSEMBLY (Driver Door) | *12 | SEAT MEMORY SWITCH |
| *13 | POSITION CONTROL ECU ASSEMBLY (Driver Seat) | *14 | FRONT SEAT INNER BELT ASSEMBLY (Driver Seat) |
| *15 | RADIO RECEIVER ASSEMBLY | - | - |
