Parts Location [06/2018 - 08/2021]: Illustration
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Occupant Classification System (For Gasoline Model) Replacement Components (1 Of 2) [06/2018 - 08/2021]
| *1 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
- | - |

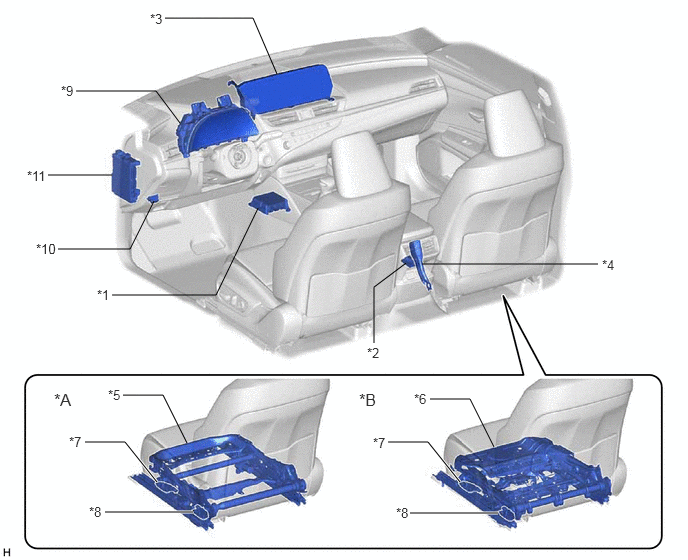

Fig 1: Occupant Classification System (For Gasoline Model) Replacement Components (2 Of 2) [06/2018 - 08/2021]
| *A | for TMC Made | *B | for TMMK Made |
| *1 | - ACCELERATION SENSOR AIRBAG ECU ASSEMBLY |
*2 | OCCUPANT DETECTION ECU |
| *3 | MULTI-DISPLAY ASSEMBLY - PASSENGER AIRBAG ON/OFF INDICATOR |
*4 | FRONT SEAT INNER BELT ASSEMBLY RH - FRONT PASSENGER SIDE BUCKLE SWITCH |
| *5 | FRONT SEAT ADJUSTER ASSEMBLY RH | *6 | SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY RH |
| *7 | FRONT OCCUPANT CLASSIFICATION SENSOR LH | *8 | REAR OCCUPANT CLASSIFICATION SENSOR LH |
| *9 | COMBINATION METER ASSEMBLY - SRS WARNING LIGHT |
*10 | DLC3 |
| *11 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - A/BAG-IG2 FUSE - ECU-IG1 NO. 4 FUSE |
- | - |
