Parts Location [06/2018 - ]: Illustration

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

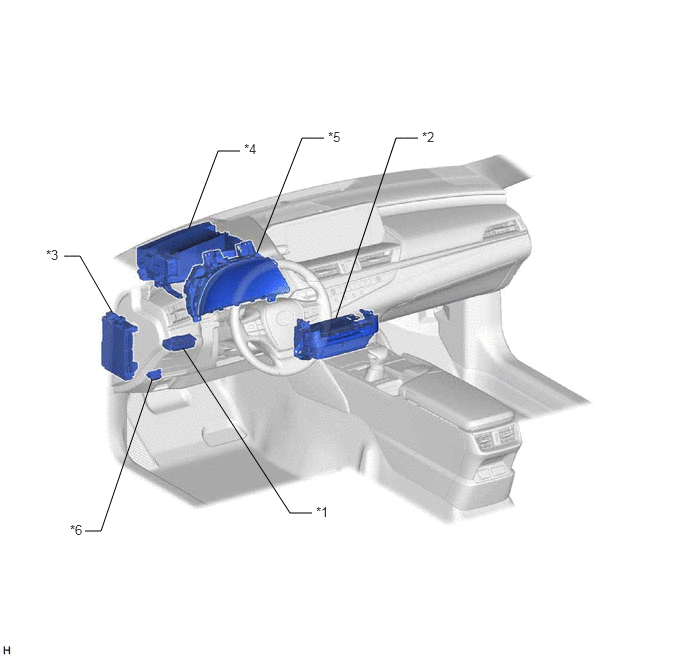

Fig 1: Headup Display System (For Gasoline Model) Replacement Components [06/2018 - ]

*1	HEADUP DISPLAY SWITCH (NO. 2 COMBINATION SWITCH ASSEMBLY)	*2	RADIO RECEIVER ASSEMBLY
*3	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-DCC NO. 2 FUSE - ECU-IG1 NO. 4 FUSE	*4	METER MIRROR SUB-ASSEMBLY
*5	COMBINATION METER ASSEMBLY	*6	DLC3
