Parts Location [06/2018 - 08/2021]: Illustration
WARNING: This page is about a different car, the 2021 Lexus ES 350, 2021 Lexus ES 250, 2020 Lexus ES 350, and 2019 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

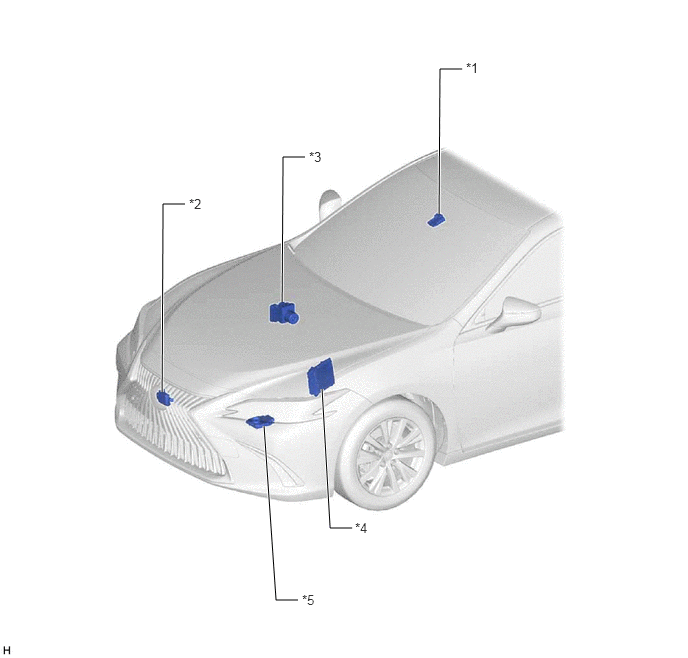

| *1 | FORWARD RECOGNITION CAMERA | *2 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *3 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
*4 | ECM |
| *5 | HEADLIGHT ECU SUB-ASSEMBLY LH | - | - |
