Radio Receiver Assembly Communication Stop Mode [09/2022 - ]: Wiring Diagram

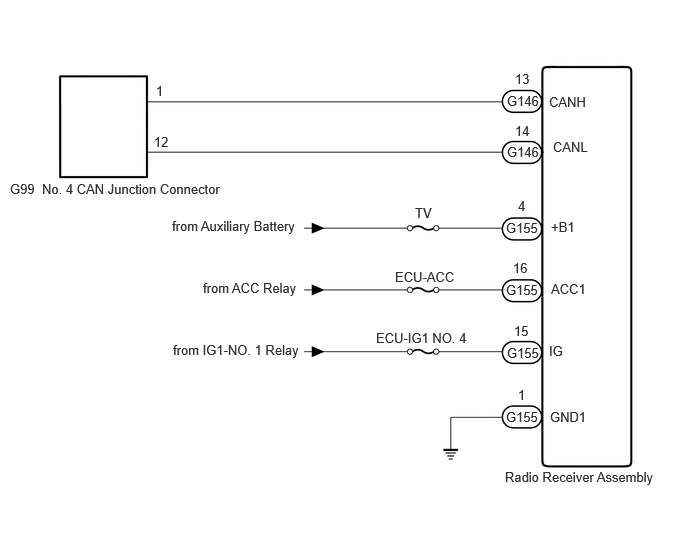

for 12.3 Inch Display Type:

GTY1123413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

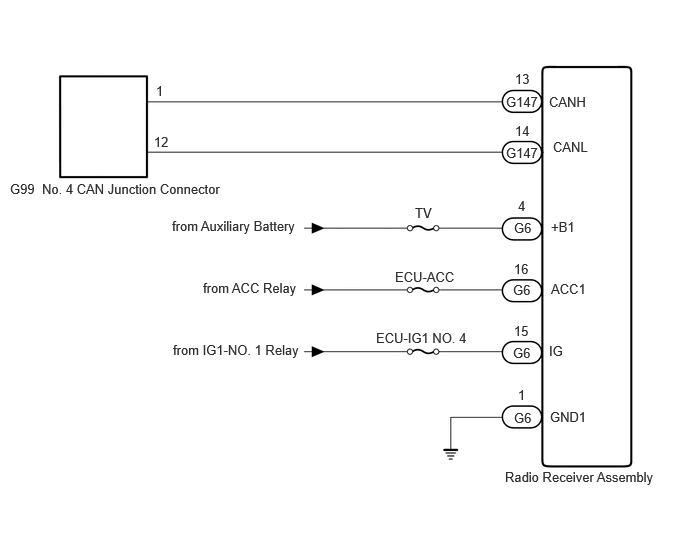

for 8 Inch Display Type:

GTY1123414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
