Radio Receiver Assembly Communication Stop Mode [06/2018 - 09/2022]: Wiring Diagram

for Navigation Receiver Type

GTY780237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

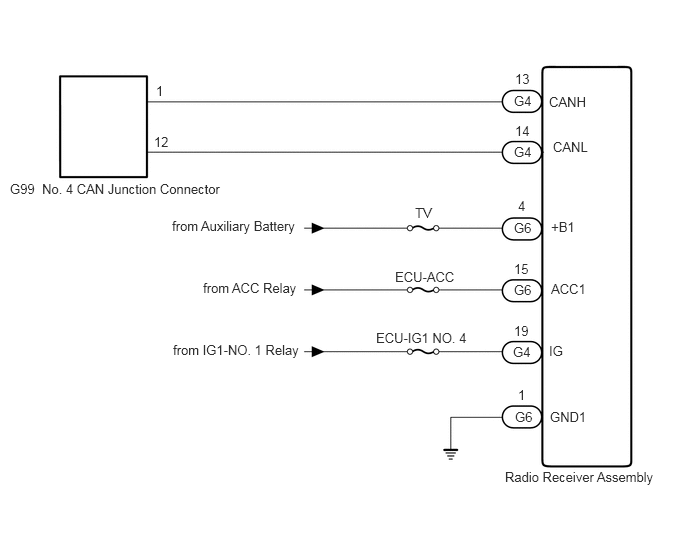

for Radio and Display Type

GTY780238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
