Removal [08/2016 - 12/2017]: Procedure

Refer to REMOVAL [08/2016 - 12/2017]

Refer to REMOVAL [10/2015 - ]

Refer to PROCEDURE - Step 6 [08/2016 - 12/2017]

Refer to PROCEDURE - Step 7 [08/2016 - 12/2017]

Refer to PROCEDURE - Step 10 [08/2016 - 12/2017]

Refer to PROCEDURE - Step 11 [08/2016 - 12/2017]

Refer to PROCEDURE - Step 16 [08/2016 - ]

Refer to PROCEDURE - Step 19 [08/2016 - ]

Refer to PROCEDURE - Step 20 [08/2016 - ]

Refer to INSTALLATION [10/2015 - ]

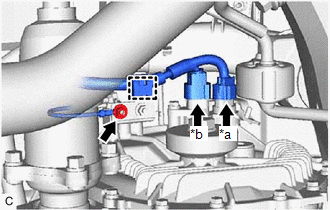

1. Disconnect the temperature sensor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Temperature Sensor Connector
   *b	Resolver Sensor Connector

2. Disconnect the resolver sensor connector.
3. Disengage the clamp.
4. Remove the nut and disconnect the rear traction motor bond cable assembly from the wire harness clamp bracket.

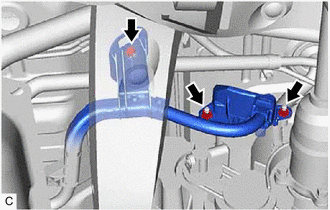

5. Using an insulated tool, remove the 3 nuts and disconnect the HV floor under wire from the extension wire assembly and vehicle body.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Insulate the disconnected terminals with insulating tape.

Refer to REMOVAL [08/2016 - 12/2017]

1. Using an engine sling device, hold the rear traction motor with transaxle assembly.
   WARNING:

   As the rear traction motor with transaxle assembly is heavy, hold it securely using an engine sling device.

   NOTE:

   • When removing the 2 bolts on the differential mount cushion side of the rear traction motor with transaxle assembly, make sure to hold the rear traction motor with transaxle assembly securely to prevent it from dropping.
   • Lightly shake the rear traction motor with transaxle assembly by hand to make sure it is securely held while performing work.
   • Do not shake the rear traction motor with transaxle assembly excessively while holding it.

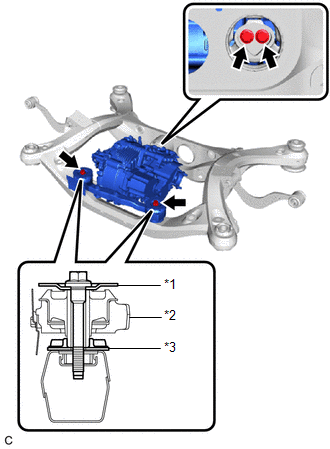

2. Remove the 4 bolts, 2 upper differential mount stoppers, 2 lower differential mount stoppers and rear traction motor with transaxle assembly from the rear suspension member sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Upper Differential Mount Stopper
   *2	Front Differential Support Assembly
   *3	Lower Differential Mount Stopper

   NOTE:

   • Do not drop the rear traction motor with transaxle assembly.
   • Do not damage the installation surface of the rear traction motor with transaxle assembly.

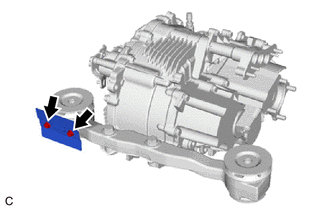

1. Remove the 2 bolts and differential support protector from the front differential support assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

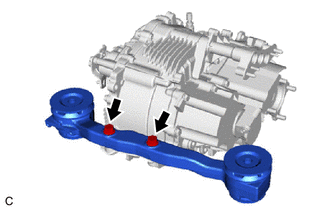

2. Remove the 2 bolts and front differential support assembly from the rear traction motor with transaxle assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

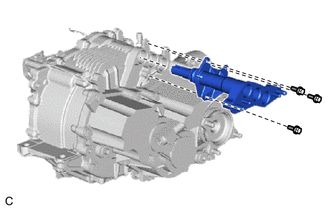

1. Remove the 3 bolts and extension wire assembly from the rear traction motor with transaxle assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

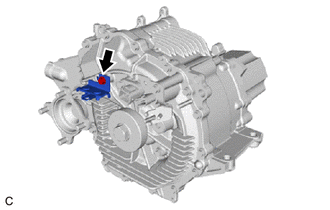

1. Remove the bolt and wire harness clamp bracket from the rear traction motor with transaxle assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

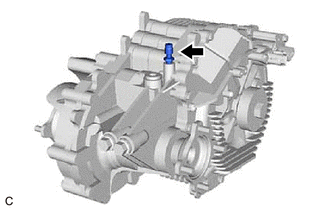

1. Remove the breather plug from the rear traction motor with transaxle assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Be careful not to damage the breather plug.
