Installation [10/2015 - 08/2016]: Procedure

  1. INSTALL HOLE PLUG
    1. Install the 12 hole plugs to the rear suspension member sub-assembly as shown in the illustration.

      HINT:

      The upper and lower hole plug shapes are different.

      GTY620503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL BOLT

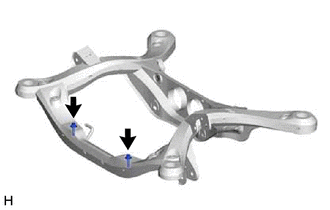

    1. Install the 2 bolts to the rear suspension member sub-assembly.
      GTY620504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION (for LH Side)
    1. Confirm the installation direction and temporarily install a new rear suspension member front body mounting cushion.
      GTY680637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View from Underneath
      *b Front of the Vehicle
      *c Left Side of the Vehicle
      *d 45°
    2. Install SST as shown in the illustration.
      • SST: 09527-17011
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01020
        3. 09830-01030
        4. 09830-01060
      NOTE:

      Apply grease to the threads and tip of the SST center bolt before use.

      HINT:

      Use SST with the "F" mark facing the rear suspension member front body mounting cushion.

      GTY664296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, install the rear suspension member front body mounting cushion until there is no clearance between the rear suspension member sub-assembly and rear suspension member front body mounting cushion.
      • SST: 09527-17011
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01020
        3. 09830-01030
        4. 09830-01060
      NOTE:

      If the rear suspension member sub-assembly is scratched, apply paint to the scratched areas of the rear suspension member sub-assembly.

      GTY669669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      *b Turn
    4. Remove SST from the rear suspension member sub-assembly.
  4. INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION (for RH Side)
    1. Confirm the installation direction and temporarily install a new rear suspension member front body mounting cushion.
      GTY656104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View from Underneath
      *b Front of the Vehicle
      *c Left Side of the Vehicle
      *d 45°
    2. Install SST as shown in the illustration.
      • SST: 09527-17011
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01020
        3. 09830-01030
        4. 09830-01060
      NOTE:

      Apply grease to the threads and tip of the SST center bolt before use.

      HINT:

      Use SST with the "F" mark facing the rear suspension member front body mounting cushion.

      GTY617373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, install the rear suspension member front body mounting cushion until there is no clearance between the rear suspension member sub-assembly and rear suspension member front body mounting cushion.
      • SST: 09527-17011
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01020
        3. 09830-01030
        4. 09830-01060
      NOTE:

      If the rear suspension member sub-assembly is scratched, apply paint to the scratched areas of the rear suspension member sub-assembly.

      GTY645547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      *b Turn
    4. Remove SST from the rear suspension member sub-assembly.
  5. INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH
    1. Confirm the installation direction and temporarily install a new rear suspension member rear body mount cushion LH.
      GTY670244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View from Underneath
      *b Front of the Vehicle
      *c Left Side of the Vehicle
    2. Install SST as shown in the illustration.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01020
        3. 09830-01030
        4. 09830-01060
      NOTE:

      Apply grease to the threads and tip of the SST center bolt before use.

      HINT:

      Use SST with the "F" mark facing the rear suspension member rear body mount cushion LH.

      GTY649911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, install the rear suspension member rear body mount cushion LH until there is no clearance between the rear suspension member sub-assembly and rear suspension member rear body mount cushion LH.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01020
        3. 09830-01030
        4. 09830-01060
      NOTE:

      If the rear suspension member sub-assembly is scratched, apply paint to the scratched areas of the rear suspension member sub-assembly.

      GTY685149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      *b Turn
    4. Remove SST from the rear suspension member sub-assembly.
  6. INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH
    1. Confirm the installation direction and temporarily install a new rear suspension member rear body mount cushion RH.
      GTY685040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View from Underneath
      *b Front of the Vehicle
      *c Right Side of the Vehicle
      *d 15°
    2. Install SST as shown in the illustration.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01020
        3. 09830-01030
        4. 09830-01060
      NOTE:

      Apply grease to the threads and tip of the SST center bolt before use.

      HINT:

      Use SST with the "F" mark facing the rear suspension member rear body mount cushion RH.

      GTY642641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, install the rear suspension member rear body mount cushion RH until there is no clearance between the rear suspension member sub-assembly and rear suspension member rear body mount cushion RH.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01020
        3. 09830-01030
        4. 09830-01060
      NOTE:

      If the rear suspension member sub-assembly is scratched, apply paint to the scratched areas of the rear suspension member sub-assembly.

      GTY663169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      *b Turn
    4. Remove SST from the rear suspension member sub-assembly.
  7. INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  8. INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  9. INSTALL REAR SUSPENSION MEMBER UPPER STOPPER
    1. Install the 2 rear suspension member upper stoppers to the rear suspension member sub-assembly.
  10. INSTALL REAR SUSPENSION MEMBER REAR UPPER STOPPER
    1. Install the 2 rear suspension member rear upper stoppers to the rear suspension member sub-assembly.
  11. INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY
    1. Using an engine lifter, 2 attachments and 2 wooden blocks or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.
      WARNING:
      GTY677083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.
      • If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.
      NOTE:
      • Use attachments and wooden blocks to keep the rear suspension member sub-assembly level.
      • Keep supporting the rear suspension member sub-assembly until the installation has been completed.

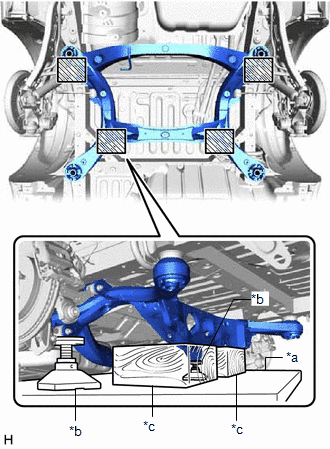

    2. Raise the rear suspension member sub-assembly until there is no clearance between the rear suspension member sub-assembly and vehicle body.
      GTY631108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Engine Lifter
      *b Attachment
      *c Wooden Block
      Attachment and Wooden Block Placement Location

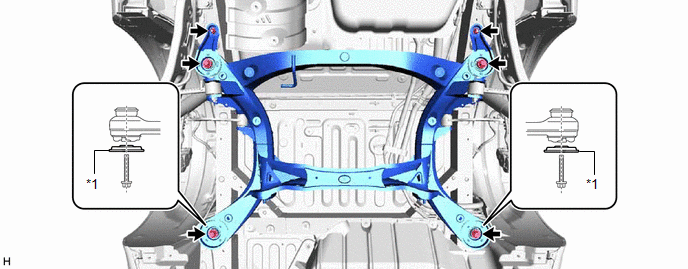

    3. Install the rear suspension member sub-assembly with the 2 rear lower suspension braces, rear lower suspension member stopper LH and rear lower suspension member stopper RH, with the 4 bolts and 2 nuts.
      GTY639616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Lower Suspension Brace - -

      Bolt

      Torque: 158 N*m (1611 kgf*cm, 117 ft.*lbf)

      Nut

      Torque: 32 N*m (326 kgf*cm, 24 ft.*lbf)

      NOTE:

      Be sure to install the rear suspension member sub-assembly with the rear lower suspension braces facing in the correct direction as shown in the illustration.

    4. Lower the engine lifter.
  12. INSTALL NO. 3 FLOOR WIRE
    1. Install the No. 3 floor wire to the rear suspension member sub-assembly with the bolt and 3 clamps.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

      NOTE:

      Do not twist the No. 3 floor wire when installing it.

  13. CONNECT REAR UPPER CONTROL ARM ASSEMBLY LH
    1. Using a brass bar and a hammer, push out the bushing until it is positioned as shown in the illustration.

      HINT:

      Pushing out the bushing makes it easier to connect the rear upper control arm assembly LH.

      GTY625121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the rear upper control arm assembly LH to the rear axle carrier sub-assembly LH with the bolt and nut.

      Torque: 145 N*m (1479 kgf*cm, 107 ft.*lbf)

      NOTE:
      • Insert the bolt with the threaded end facing the rear of the vehicle.
      • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
      GTY625119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. CONNECT REAR UPPER CONTROL ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  15. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  16. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  17. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  18. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  19. INSTALL REAR LOWER COIL SPRING INSULATOR LH

    Refer to PROCEDURE - Step 2

  20. INSTALL REAR LOWER COIL SPRING INSULATOR RH

    HINT:

    Perform the same procedure as for the LH side.

  21. INSTALL REAR COIL SPRING LH

    Refer to PROCEDURE - Step 3

  22. INSTALL REAR COIL SPRING RH

    HINT:

    Perform the same procedure as for the LH side.

  23. INSTALL REAR STABILIZER BAR

    Refer to PROCEDURE - Step 3

  24. INSTALL REAR STABILIZER LINK ASSEMBLY LH

    Refer to PROCEDURE - Step 4

  25. INSTALL REAR STABILIZER LINK ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  26. INSTALL REAR SKID CONTROL SENSOR WIRE LH
    1. Install the rear skid control sensor wire LH with the 2 bolts and nut.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

    2. Connect the connector.
  27. INSTALL REAR SKID CONTROL SENSOR WIRE RH
    1. Install the rear skid control sensor wire RH with the 2 bolts and nut.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

    2. Connect the connector and engage the 2 clamps.
  28. CONNECT REAR SKID CONTROL SENSOR WIRE LH
    1. Connect the connector to the rear axle hub and bearing assembly LH.
      NOTE:

      Do not twist the rear skid control sensor wire LH.

    2. Install the rear skid control sensor wire LH with the bolt.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  29. CONNECT REAR SKID CONTROL SENSOR WIRE RH

    HINT:

    Perform the same procedure as for the LH side.

  30. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY RH

    Refer to INSTALLATION [10/2015 - 03/2018]

  31. CONNECT REAR FLEXIBLE HOSE LH
    1. Connect the rear flexible hose LH to the rear upper control arm assembly LH with the bolt.

      Torque: 18.8 N*m (192 kgf*cm, 14 ft.*lbf)

      GTY620193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. CONNECT REAR FLEXIBLE HOSE RH

    HINT:

    Perform the same procedure as for the LH side.

  33. STABILIZE SUSPENSION

    Refer to PROCEDURE - Step 5

  34. INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  35. INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  36. INSTALL REAR SUSPENSION ARM COVER LH

    Refer to PROCEDURE - Step 8

  37. INSTALL REAR SUSPENSION ARM COVER RH

    HINT:

    Perform the same procedure as for the LH side.

  38. INSTALL TAIL EXHAUST PIPE ASSEMBLY

    Refer to INSTALLATION [10/2015 - 03/2018]

  39. INSTALL REAR WHEEL

    Refer to PROCEDURE - Step 1

  40. INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

    Refer to PROCEDURE - Step 11

  41. INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  42. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 8

  43. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

    Refer to ADJUSTMENT [10/2015 - 08/2016]

  44. CHECK FOR SPEED SENSOR SIGNAL

    Refer to TEST MODE PROCEDURE [10/2015 - 08/2016]

  45. PERFORM INITIALIZATION
    Parking assist monitor system for Initialization: Refer to INITIALIZATION [10/2015 - 08/2019]
    for Calibration: Refer to CALIBRATION [10/2015 - 03/2018]
    Panoramic view monitor system for Initialization: Refer to INITIALIZATION [10/2015 - 08/2019]
    for Calibration: Refer to CALIBRATION [10/2015 - 03/2018]
    • Automatic headlight beam level control system
    • AFS (Adaptive front-lighting system)
    		 Refer to INITIALIZATION [10/2015 - 08/2019]
