Removal [08/2019 - ]: Procedure

Refer to PROCEDURE - Step 1

Refer to REMOVAL [08/2016 - ]

Refer to REMOVAL [08/2019 - ]

1. Remove the bolt and disconnect the discharge hose sub-assembly from the compressor and magnetic clutch.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the O-ring from the discharge hose sub-assembly.
   NOTE:

   Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

1. Remove the bolt and disconnect the suction hose sub-assembly from the compressor and magnetic clutch.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the O-ring from the suction hose sub-assembly.
   NOTE:

   Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

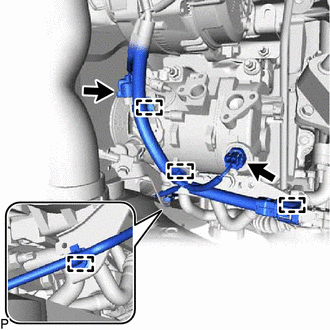

1. Disconnect each connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage each clamp.
3. for Type A:
   1. Remove the 2 bolts and 2 nuts, and separate the bracket.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Bracket
      	Bolt
      	Nut

   2. Using an E 8 "TORX" socket wrench, remove the 2 stud bolts.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. for Type B:
   1. Remove the 4 bolts and separate the bracket.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a

      Bracket

5. Remove the compressor and magnetic clutch.
