Removal [08/2016 - ]: Procedure

  1. REMOVE FRONT WHEEL RH

    Refer to PROCEDURE - Step 1

  2. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 14 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 14 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 16 [08/2019 - ]

  3. REMOVE V-RIBBED BELT

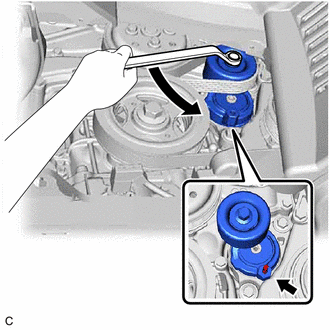

    1. Release the V-ribbed belt tension by turning the V-ribbed belt tensioner assembly counterclockwise.
      GTY658247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the V-ribbed belt tensioner assembly counterclockwise to align its holes, and then insert a 5 mm hexagon wrench to secure the V-ribbed belt tensioner assembly.
    3. Remove the V-ribbed belt from the V-ribbed belt tensioner assembly.
