Removal [08/2016 - 12/2017]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2015 - 12/2017]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2016 - 12/2017]

  3. REMOVE RADIATOR ASSEMBLY

    Refer to REMOVAL [08/2016 - 08/2019]

  4. REMOVE V-RIBBED BELT

    Refer to REMOVAL [08/2016 - ]

  5. REMOVE GENERATOR ASSEMBLY
    1. Open the terminal cap.
      GTY666605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and disconnect the wire harness from terminal B.
    3. Disconnect the generator assembly connector.
    4. Disconnect the compressor and magnetic clutch connector.
    5. Disengage the 2 wire harness clamps.
    6. Type A:
      GTY666639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 bolts and generator assembly bracket.

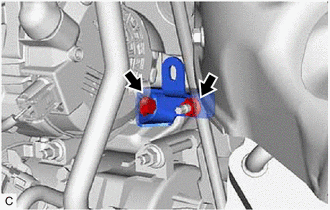

    7. Type B:
      1. Remove the bolt, nut and generator assembly bracket.
        GTY684448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove the 2 bolts and generator assembly.
      GTY666637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Remove the bolt and wire harness clamp bracket.
      GTY666636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
