Components [09/2015 - ]

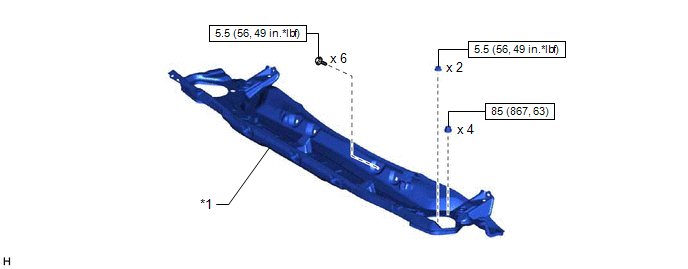

Fig 1: Hood Support Replacement Components With Torque Specifications (1 Of 2)
GTY680558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OUTER COWL TOP PANEL SUB-ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

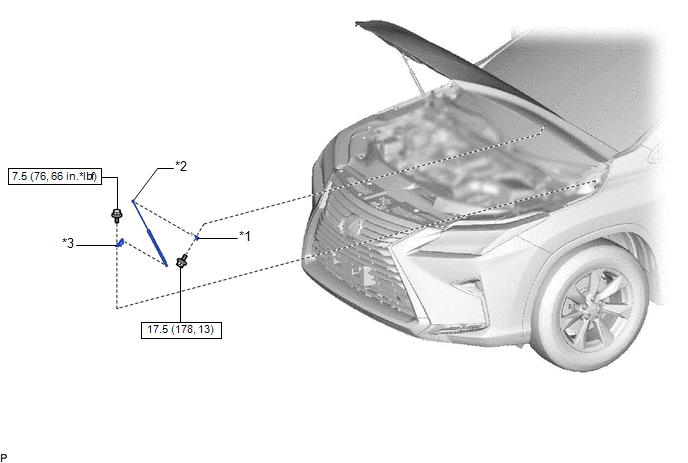

Fig 2: Hood Support Replacement Components With Torque Specifications (2 Of 2)
GTY627758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 HOOD STAY BRACKET *2 HOOD SUPPORT ASSEMBLY
*3 HOOD SUPPORT BRACKET - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
