Front Door Opening Trim Weatherstrip
>>
Components [09/2015 - ]
Components [09/2015 - ]

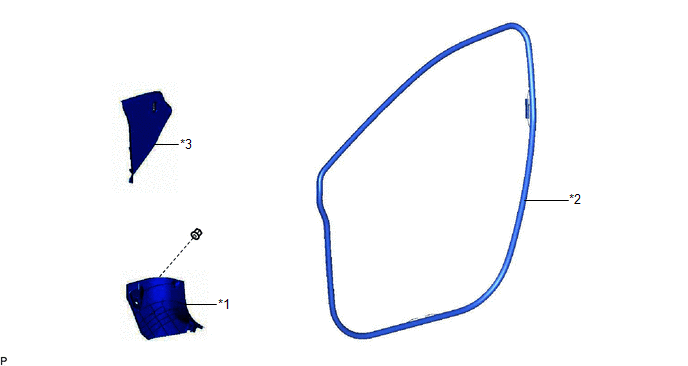

Fig 1: Front Door Opening Trim Weatherstrip Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
COWL SIDE TRIM BOARD
*2
FRONT DOOR OPENING TRIM WEATHERSTRIP
*3
INSTRUMENT PANEL GARNISH
-
-
