On-Vehicle Inspection [09/2015 - ]: Procedure
- INSPECT WASHER NOZZLE SUB-ASSEMBLY
- Operate the washer nozzle sub-assemblies and check the position that the washer fluid contacts the windshield.
Standard

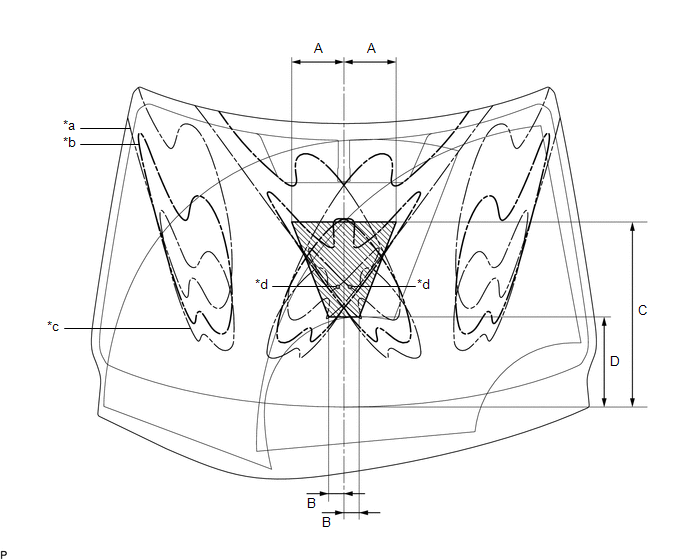

Center of washer fluid contacts the windshield in the areas shown in the illustration.
*a Upper Limit *b Standard *c Lower Limit *d Center of washer fluid contact Measurement - - Standard Measurement
Area Measurement Area Measurement A 153.3 mm (6.04 in.) B 44.4 mm (1.75 in.) C 543.3 mm (1.78 ft.) D 261.9 mm (10.3 in.) HINT:
If the result is not as specified, replace the washer nozzle sub-assembly.
- Operate the washer nozzle sub-assemblies and check the position that the washer fluid contacts the windshield.
