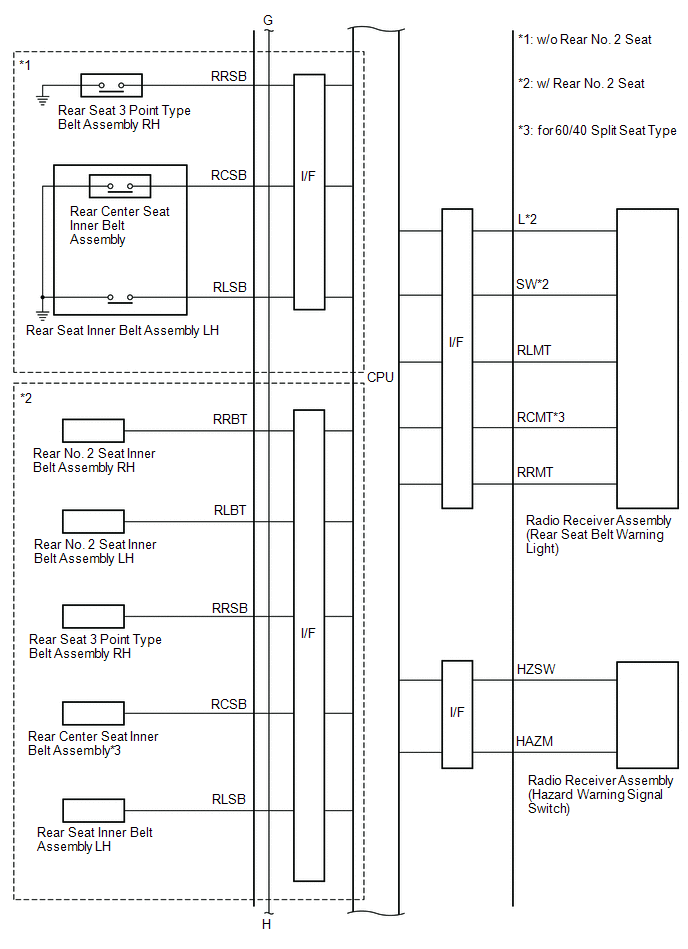

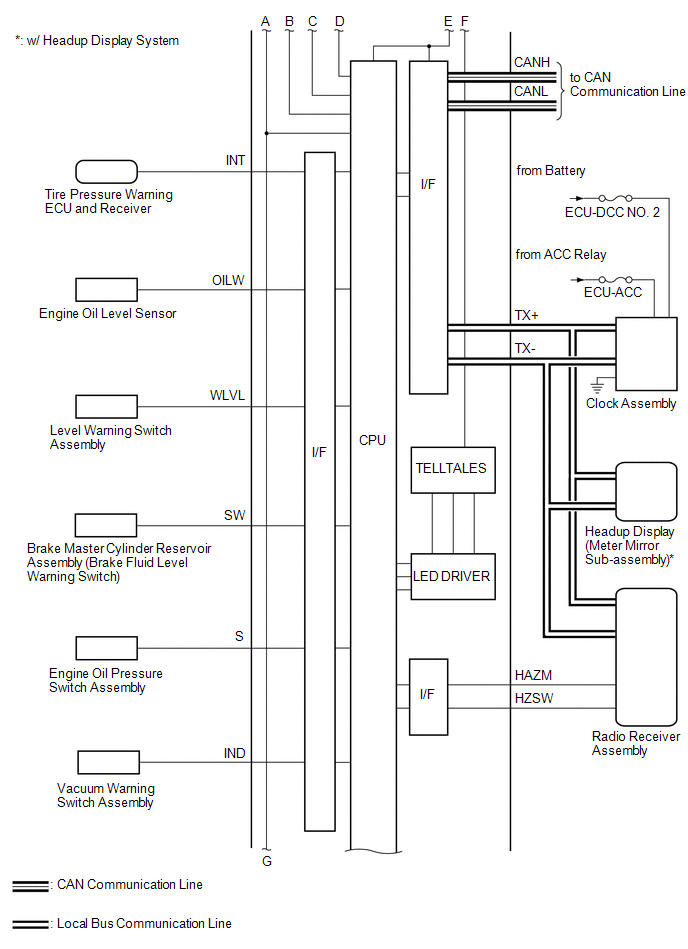

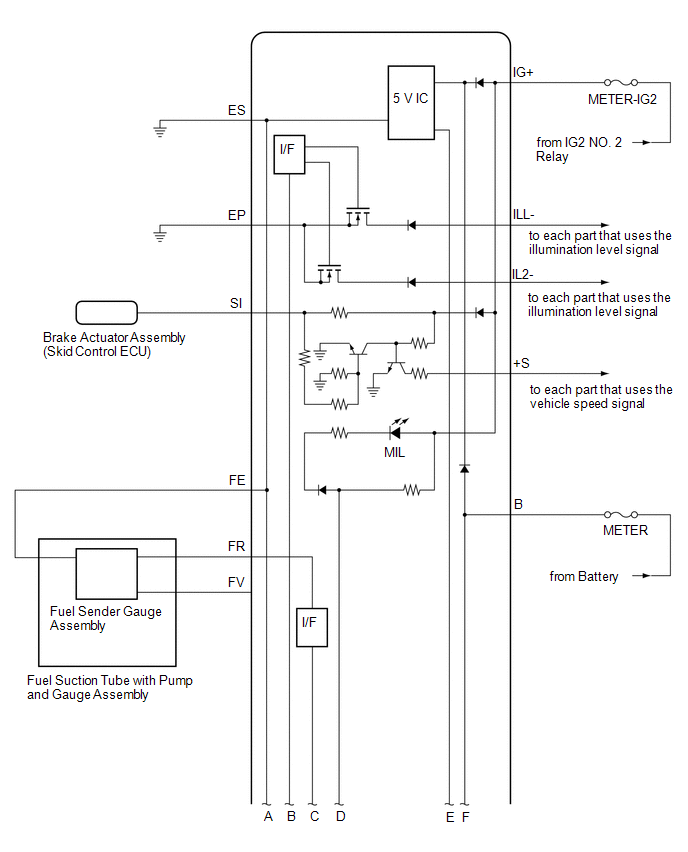

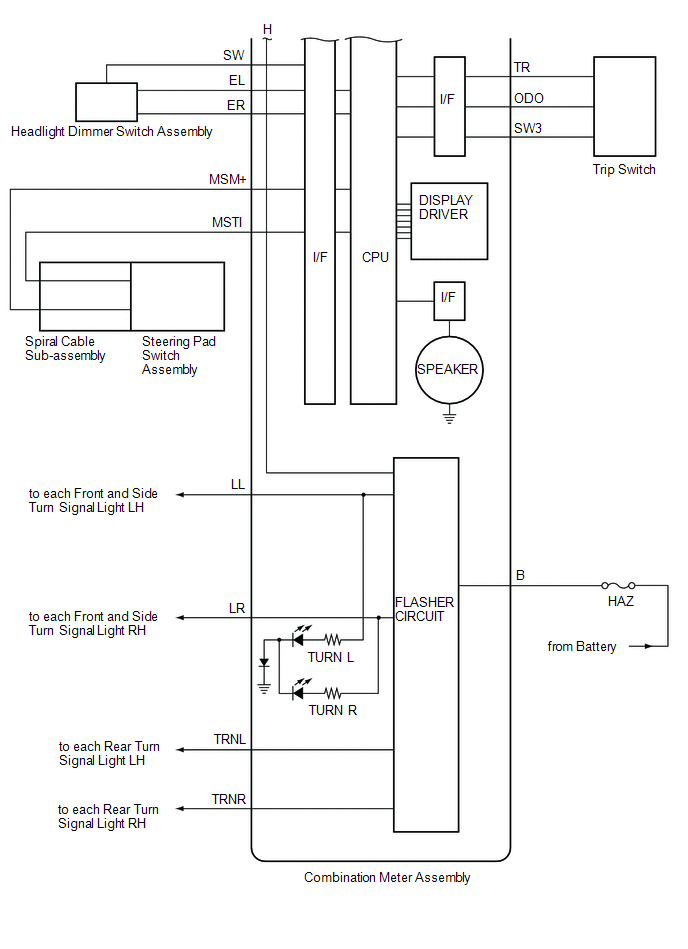

Home >> Lexus >> 2019 >> RX 350L FWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter / Gauge / Display - Inspection (1 Of 3) >> Meter / Gauge System >> System Diagram [08/2019 - ] >> System Diagram [08/2019 - ]
