Replacement [09/2015 - 08/2019]: Procedure

Refer to PROCEDURE - Step 7 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 7 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 7 [12/2017 - 08/2019]

Refer to PROCEDURE - Step 8 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 8 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 8 [12/2017 - 08/2019]

Refer to PROCEDURE - Step 13 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 13 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 13 [12/2017 - 08/2019]

1. Remove the refill plug and gasket from the automatic transaxle case sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Using a T40 "TORX" socket wrench, remove the drain plug and O-ring from the transaxle housing.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Using a 17 mm straight hexagon wrench, remove the overflow plug and O-ring from the transaxle housing and drain the automatic transaxle fluid.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Using a 17 mm straight hexagon wrench, install a new O-ring and the overflow plug to the transaxle housing.

   Torque: 47 N*m (479 kgf*cm, 35 ft.*lbf)

5. Using a T40 "TORX" socket wrench, temporarily install the O-ring and drain plug to the transaxle housing.

   HINT:

   Reuse the old O-ring as the drain plug will be removed again to adjust the automatic transaxle fluid level.

6. Temporarily install the gasket and refill plug to avoid automatic transaxle fluid spillage.

   HINT:

   Reuse the old gasket as the refill plug will be removed again to adjust the automatic transaxle fluid level.

Refer to REMOVAL [09/2015 - 08/2019]

Refer to PROCEDURE - Step 18 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 18 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 18 [12/2017 - 08/2019]

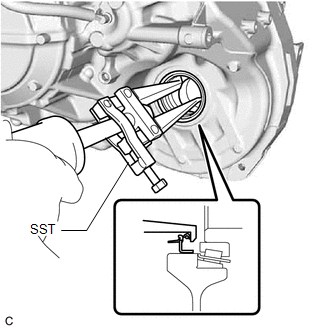

1. Using SST, remove the front drive shaft oil seal LH from the automatic transaxle case sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09308-00010
   NOTE:

   Be careful not to damage the automatic transaxle case sub-assembly.

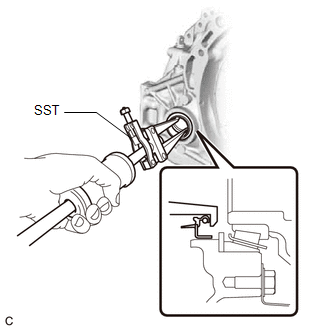

1. Using SST, remove the front drive shaft oil seal RH from the transaxle housing.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09308-00010
   NOTE:

   Be careful not to damage the transaxle housing.

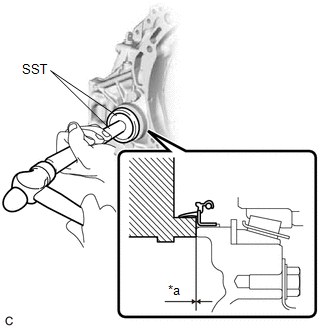

1. Using SST and a hammer, install a new front drive shaft oil seal RH to the transaxle housing.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Depth

   • SST: 09316-60011
     1. 09316-00011
   • SST: 09950-70010
     1. 09951-07150

   Standard Depth

   -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

   NOTE:

   • Make sure that the front drive shaft oil seal RH is installed in the correct direction.
   • Do not damage the lip of the front drive shaft oil seal RH.
2. Coat the lip of the front drive shaft oil seal RH with MP grease.

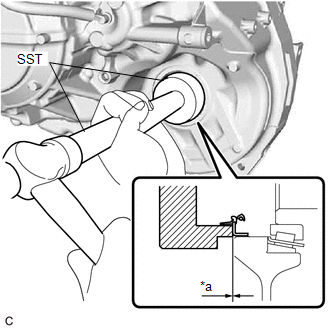

1. Using SST and a hammer, install a new front drive shaft oil seal LH to the automatic transaxle case sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Depth

   • SST: 09316-10010
   • SST: 09950-70010
     1. 09951-07100

   Standard Depth

   -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

   NOTE:

   • Make sure that the front drive shaft oil seal LH is installed in the correct direction.
   • Do not damage the lip of the front drive shaft oil seal LH.
2. Coat the lip of the front drive shaft oil seal LH with MP grease.

Refer to PROCEDURE - Step 5 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 5 [12/2017 - ]

Refer to INSTALLATION [09/2015 - ]

Refer to ADJUSTMENT [09/2015 - 08/2019]

Refer to PROCEDURE - Step 64 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 64 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 64 [12/2017 - 08/2019]

Refer to PROCEDURE - Step 69 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 69 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 69 [12/2017 - 08/2019]

Refer to PROCEDURE - Step 70 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 70 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 70 [12/2017 - 08/2019]
