Removal [08/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [08/2019 - ]

  2. REMOVE TRANSMISSION OIL COOLER AIR DUCT

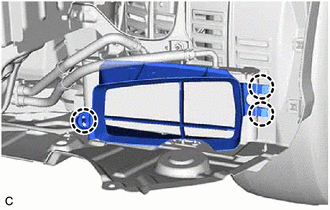

    1. Disengage the 3 claws to remove the transmission oil cooler air duct from the oil cooler assembly.
      GTY956282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. DISCONNECT OIL COOLER HOSE

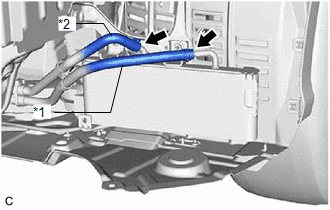

    1. Slide the clip and disconnect the outlet No. 1 oil cooler hose from the oil cooler assembly.
      GTY956344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Outlet No. 1 Oil Cooler Hose
      *2 Transmission Oil Cooler Hose
      NOTE:

      Use a container to catch any fluid which flows out of the outlet No. 1 oil cooler hose and oil cooler assembly.

    2. Slide the clip and disconnect the transmission oil cooler hose from the oil cooler assembly.
      NOTE:

      Use a container to catch any fluid which flows out of the transmission oil cooler hose and oil cooler assembly.

  4. REMOVE OIL COOLER ASSEMBLY

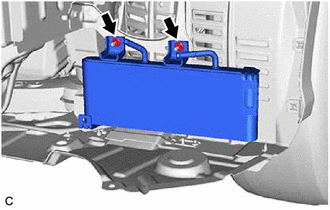

    1. Remove the 2 nuts and oil cooler assembly from the oil cooler bracket.
      GTY957089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Use a container to catch any fluid which flows out of the oil cooler assembly.

  5. REMOVE OIL COOLER BRACKET

    HINT:

    Perform this procedure only when replacement of the oil cooler bracket is necessary.

    1. Remove the bolt, nut and oil cooler bracket from the vehicle body.
      GTY956527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt
      *b Nut
