Components [12/2017 - ]

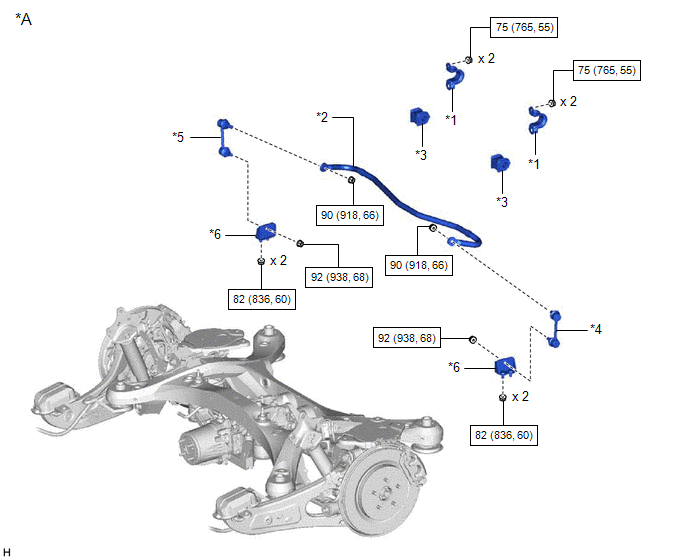

Fig 1: Rear Stabilizer Bar Replacement Components With Torque Specifications [12/2017 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Rear No. 2 Seat	-	-
*1	REAR NO. 1 STABILIZER BAR BRACKET	*2	REAR STABILIZER BAR
*3	REAR STABILIZER BUSHING	*4	REAR STABILIZER LINK ASSEMBLY LH
*5	REAR STABILIZER LINK ASSEMBLY RH	*6	REAR LOWER STABILIZER BRACKET
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

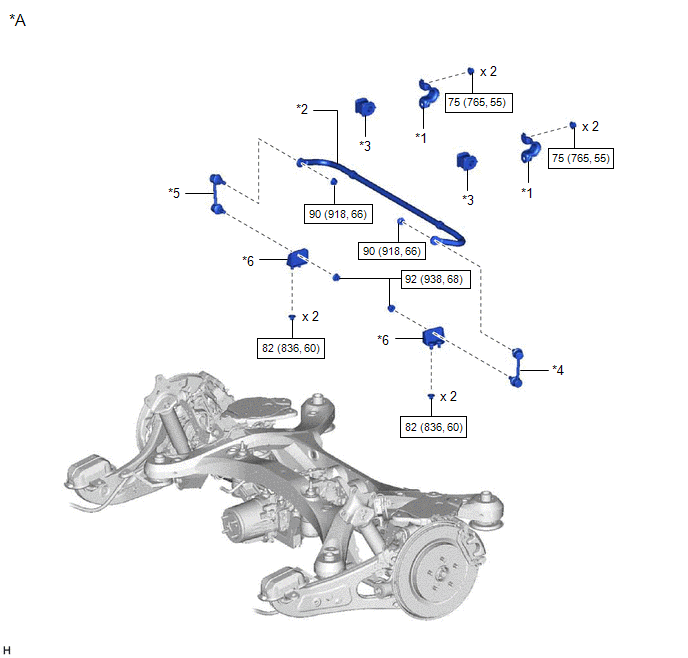

Fig 2: Rear Stabilizer Bar Replacement Components With Torque Specifications [12/2017 - ] (2 Of 2)

Callout	Description	Callout	Description
*A	w/ Rear No. 2 Seat	-	-
*1	REAR NO. 1 STABILIZER BAR BRACKET	*2	REAR STABILIZER BAR
*3	REAR STABILIZER BUSHING	*4	REAR STABILIZER LINK ASSEMBLY LH
*5	REAR STABILIZER LINK ASSEMBLY RH	*6	REAR LOWER STABILIZER BRACKET
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
