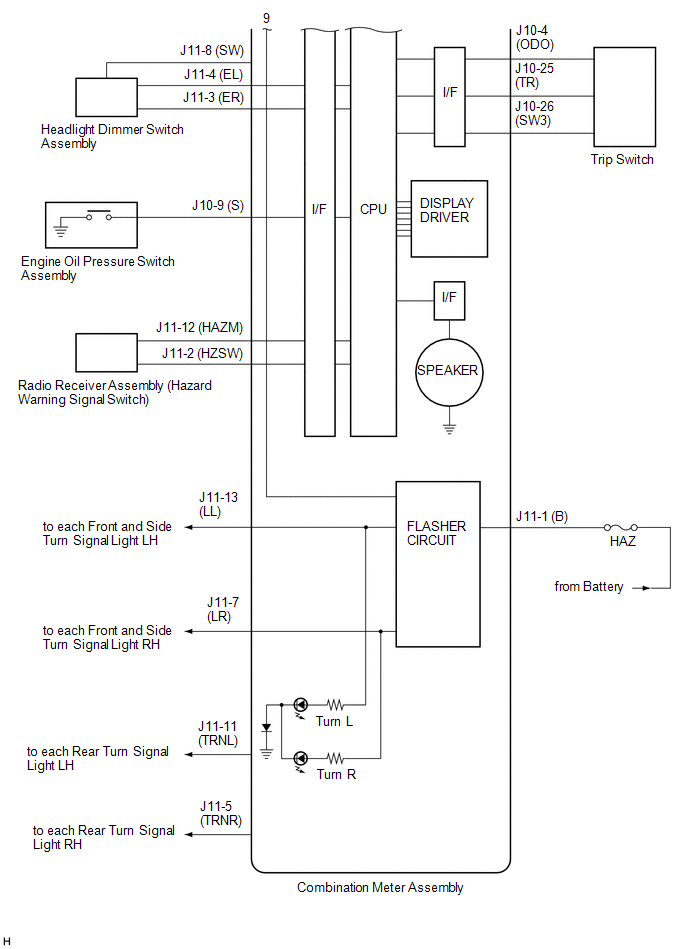

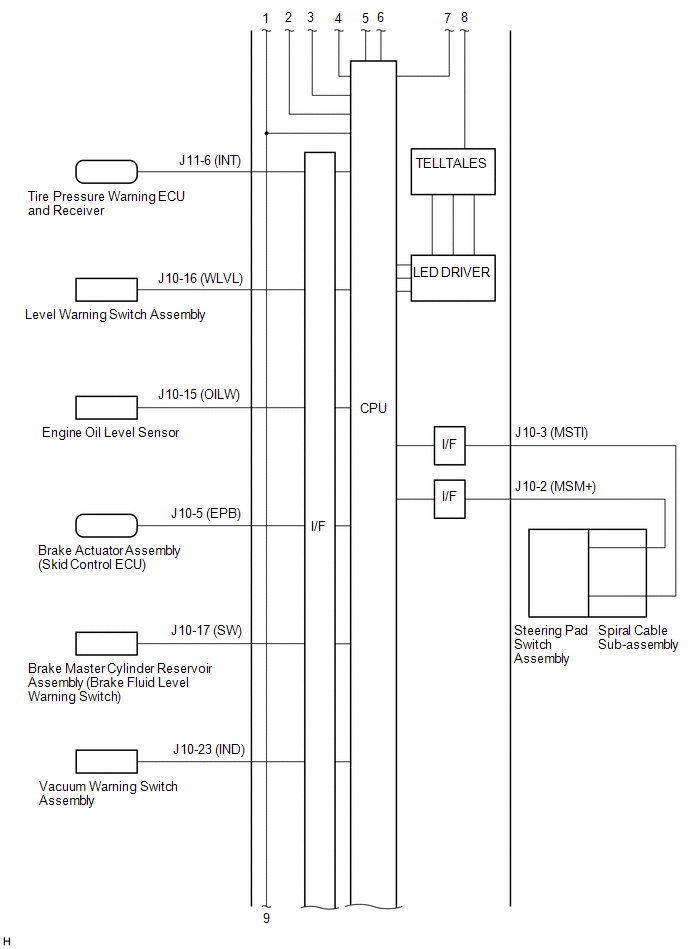

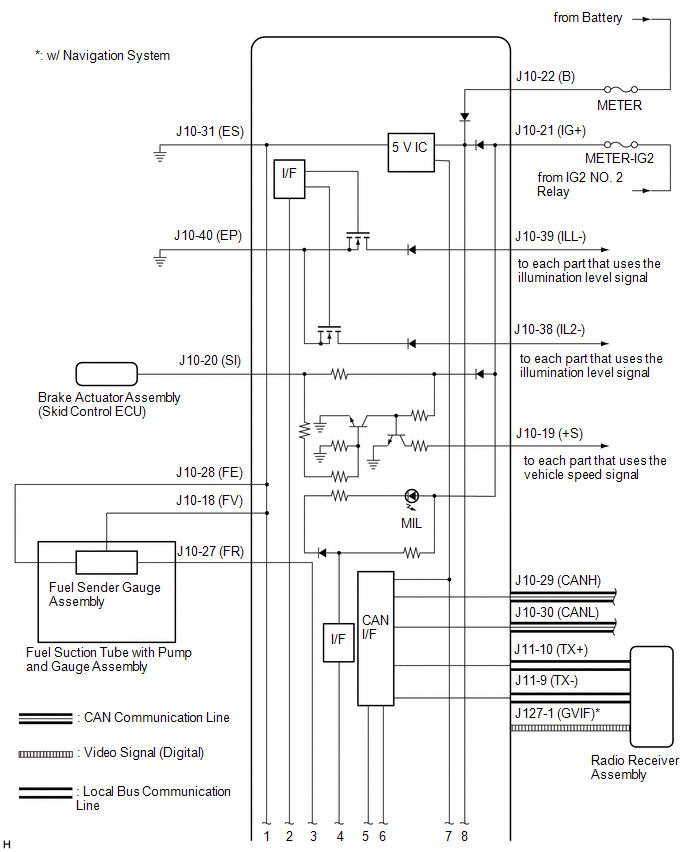

Home >> Lexus >> 2019 >> RX 350 Base, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter / Gauge / Display - Inspection (1 Of 3) >> Meter / Gauge System >> System Diagram [09/2015 - 08/2016] >> System Diagram [09/2015 - 08/2016]
