Audio / Video System - Symptom Tests (2 Of 2) & Circuit Tests
>>
Audio And Visual System
>>
Speaker Circuit [09/2020 - ]
>>
Wiring Diagram

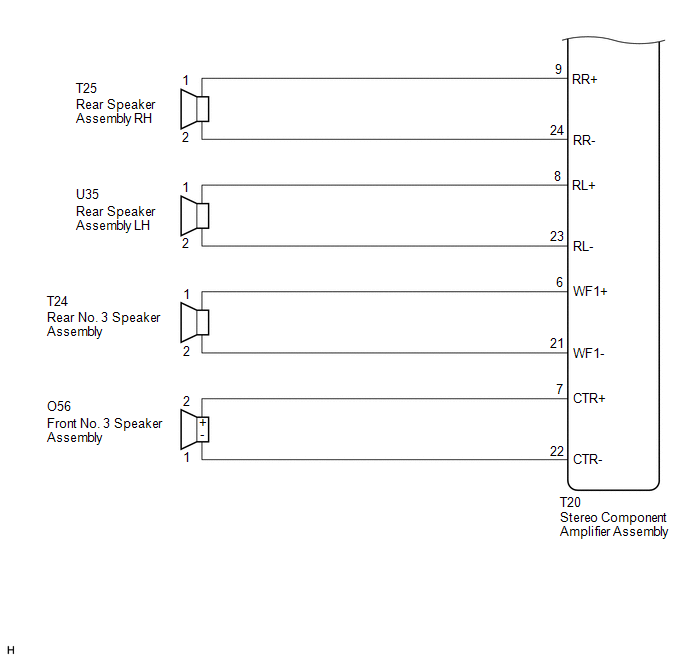

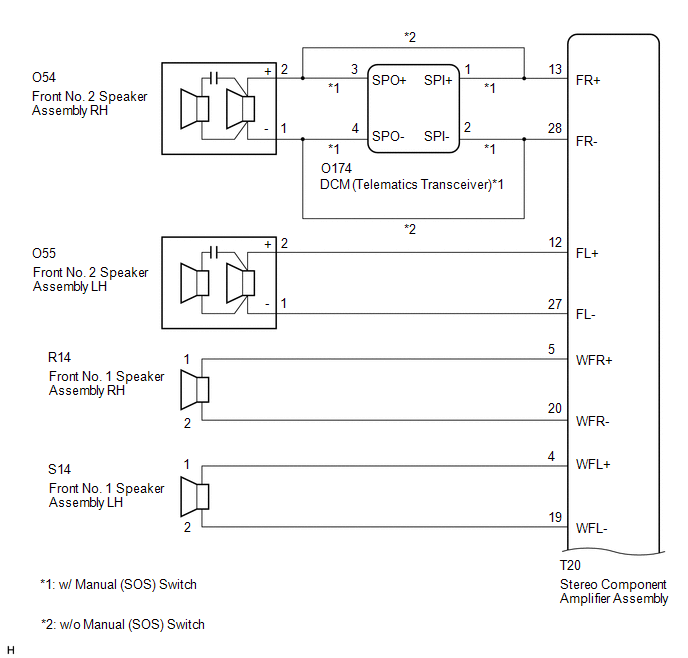

Speaker Circuit [09/2020 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
