Parts Location [09/2014 - 11/2017]: Illustration

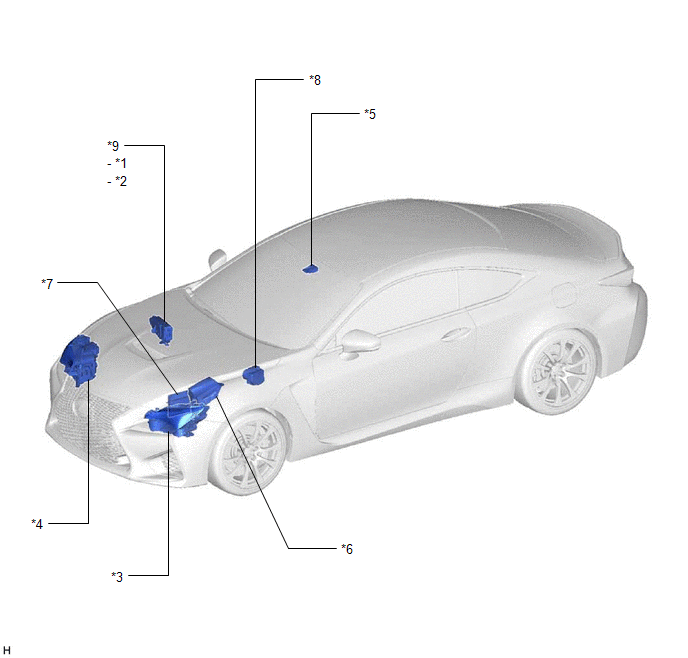

Fig 1: Automatic High Beam System Components Location (1 Of 2) [09/2014 - 11/2017]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	- H-LP LH RELAY (for Triple Beam Headlight)	*2	- H-LP RH/MIR HTR RELAY (for Triple Beam Headlight)
*3	HEADLIGHT ASSEMBLY LH - HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY LH	*4	HEADLIGHT ASSEMBLY RH - HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY RH
*5	LANE DEPARTURE WARNING CAMERA	*6	NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - SEMICONDUCTOR PWR INTEGRATION ECU (for Single Beam Headlight)
*7	ECM	*8	BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU)
*9	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - H-LP MAIN LH FUSE (for Triple Beam Headlight) - H-LP MAIN RH FUSE (for Triple Beam Headlight)	-	-

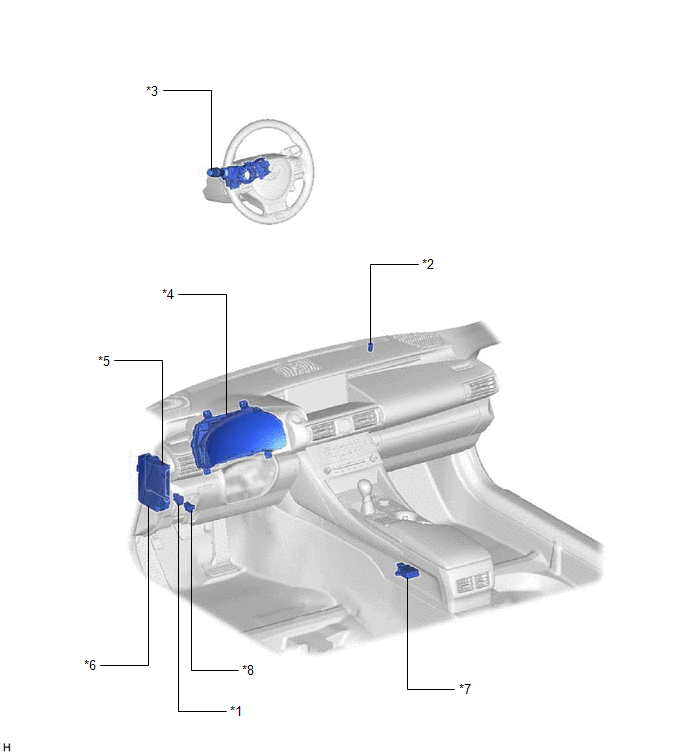

Fig 1: Automatic High Beam System Components Location (2 Of 2) [09/2014 - 11/2017]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AUTO HIGH BEAM SWITCH	*2	AUTOMATIC LIGHT CONTROL SENSOR
*3	HEADLIGHT DIMMER SWITCH ASSEMBLY	*4	COMBINATION METER ASSEMBLY
*5	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*6	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE
*7	YAW RATE SENSOR	*8	DLC3
