Check Bus 5 Line for Short to GND [09/2020 - 01/2023]: Wiring Diagram

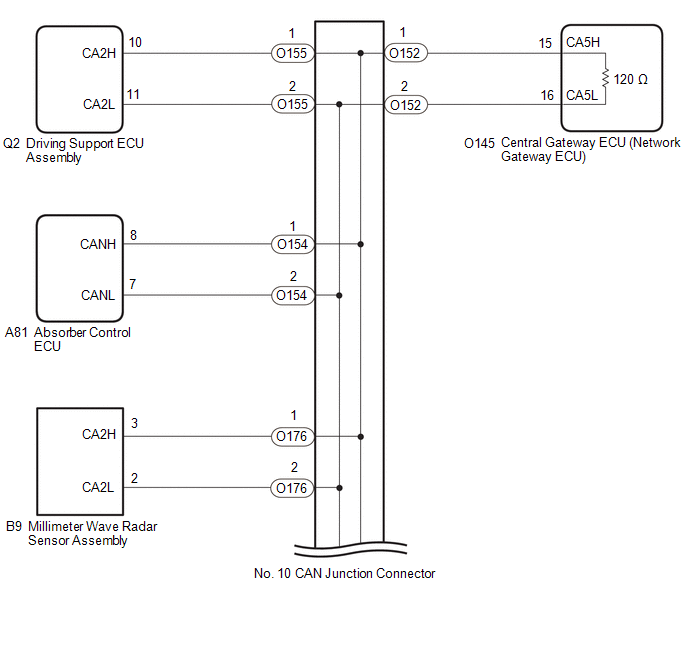

GTY957983

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

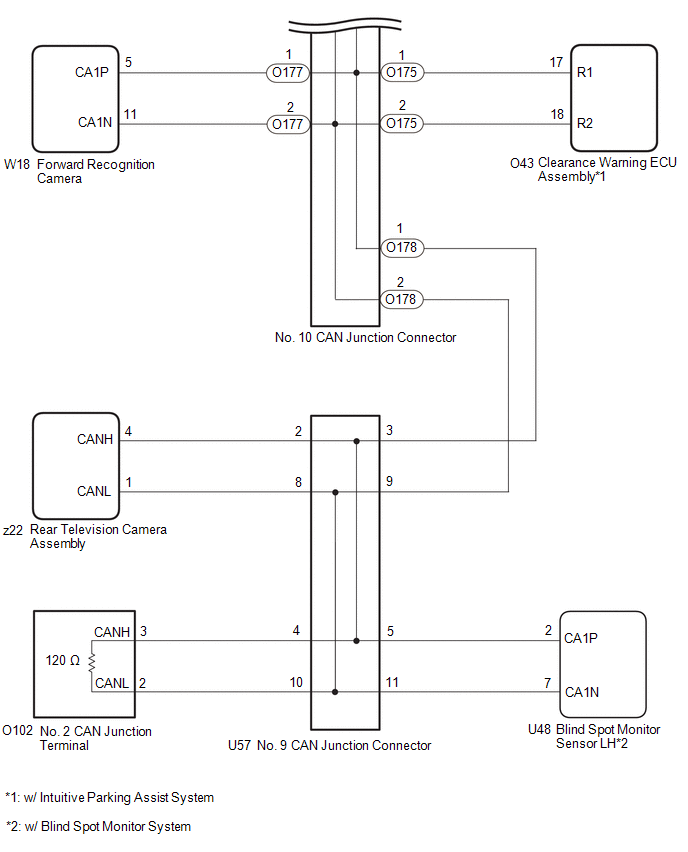

GTY958538

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
