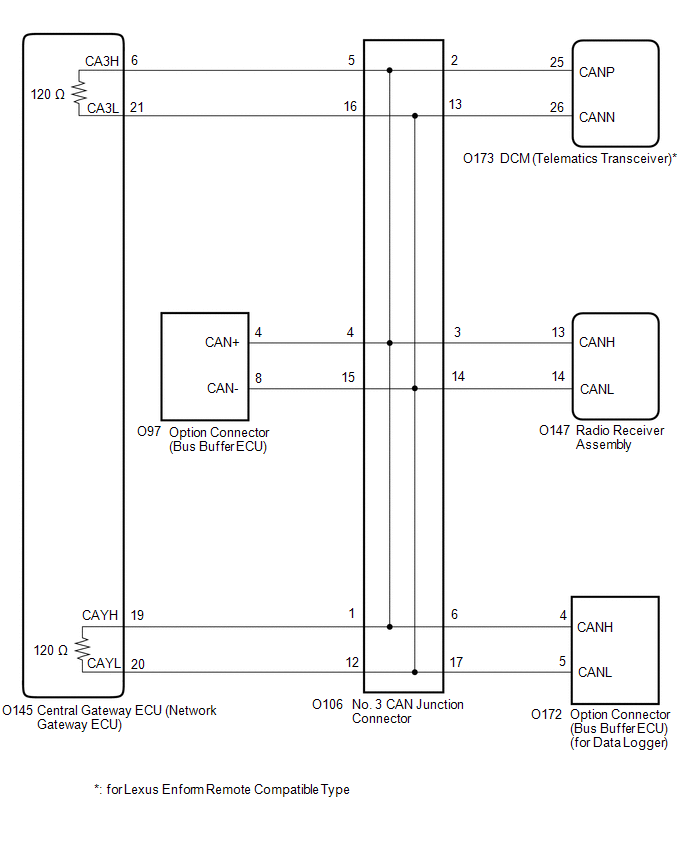

Check Bus 3 Line for Short to GND [09/2020 - ]: Wiring Diagram

GTY957138

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
