Check Bus 2 Line for Short to GND [01/2023 - ]: Wiring Diagram

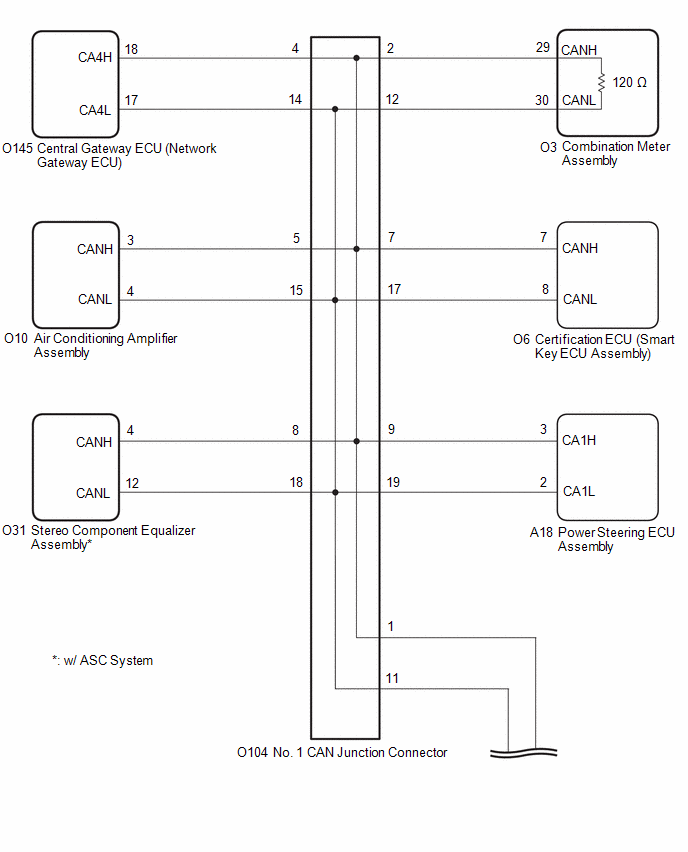

GTY1174591

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

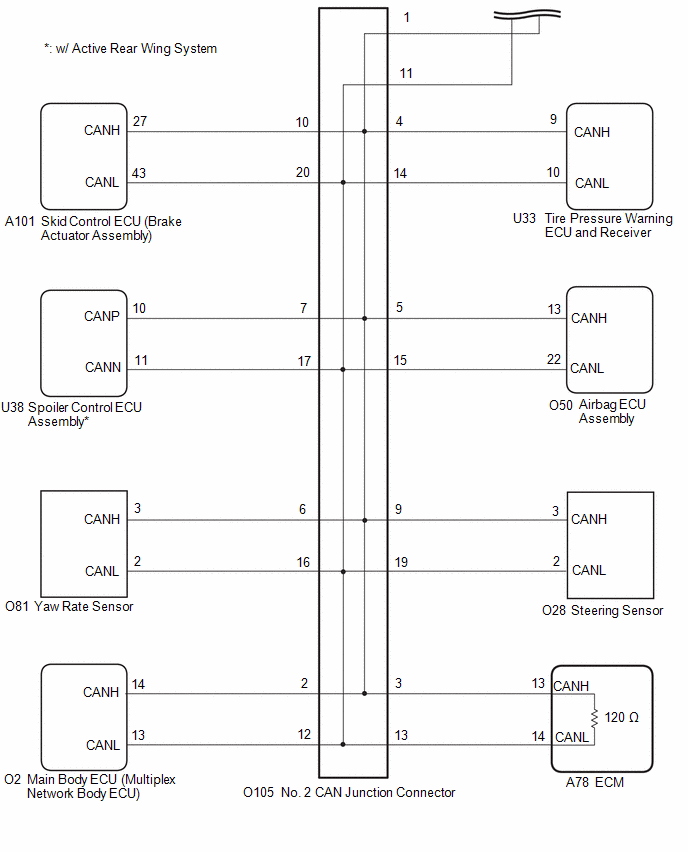

GTY1174473

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
