Check Bus 2 Line for Short to +B [03/2019 - 01/2023]: Wiring Diagram

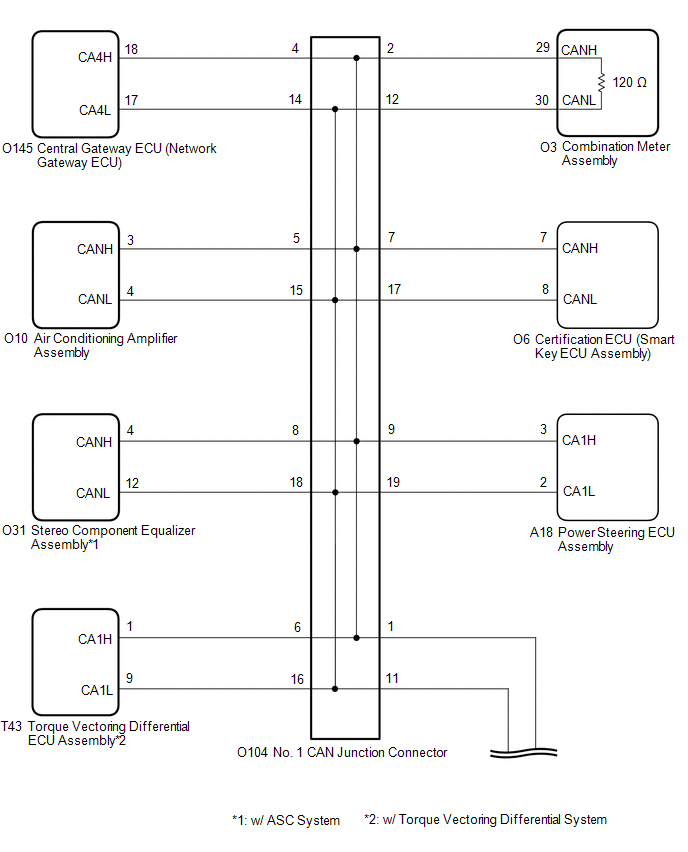

GTY787785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

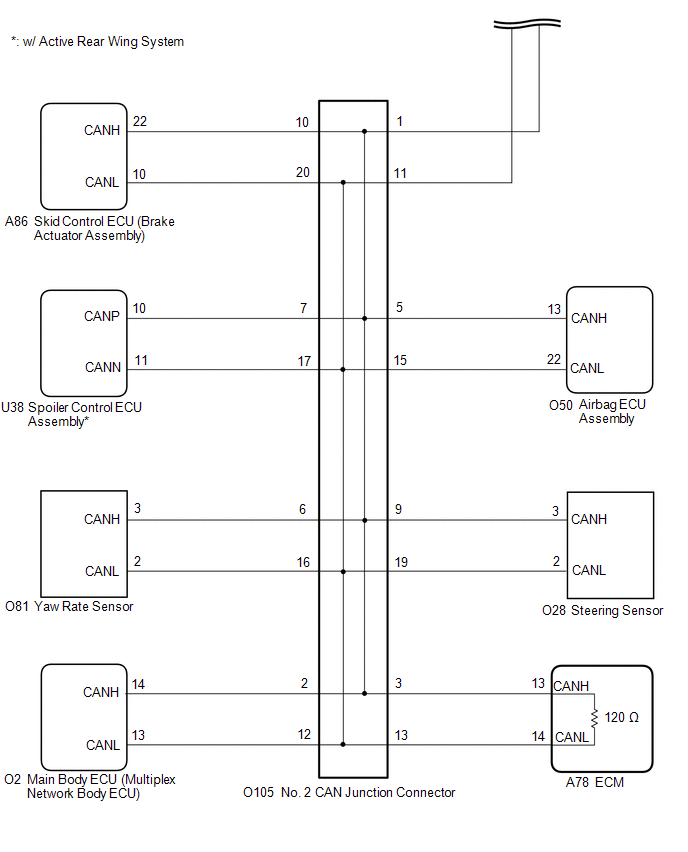

GTY956431

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
