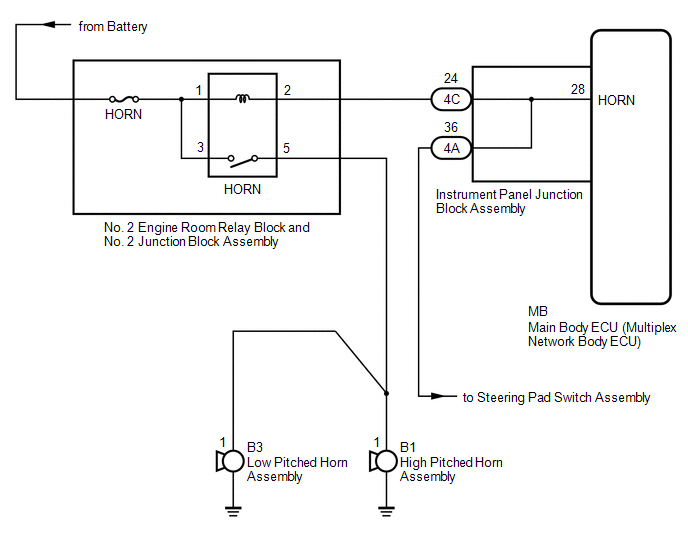

Horn Circuit [09/2014 - ]: Wiring Diagram

GTY512125

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
