Removal [10/2014 - 09/2017]: Procedure

  1. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/o Lane Departure Alert System)

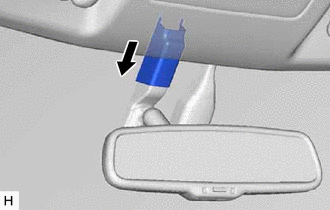

    1. Slide the inner rear view mirror stay holder cover as shown in the illustration.
      GTY521151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

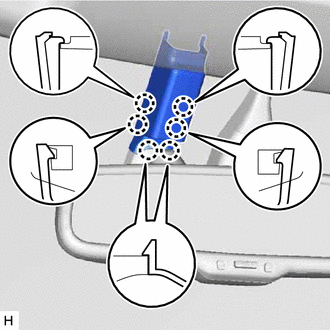

    2. Detach the 6 claws and remove the inner rear view mirror stay holder cover.
      GTY514109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/o Lane Departure Alert System)
    1. Disconnect the connector.

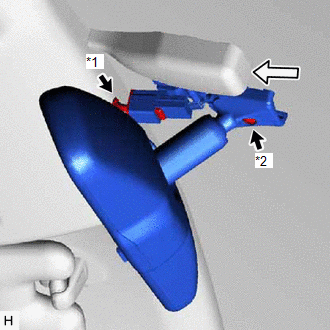

      GTY518405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Connector
      *2 Screw
    2. Using a T20 "TORX" socket wrench, remove the screw.
    3. Slide the inner rear view mirror assembly in the direction indicated by the arrow shown in the illustration to remove the inner rear view mirror assembly.
  3. REMOVE NO. 1 LANE RECOGNITION COVER (w/ Lane Departure Alert System)

    Refer to PROCEDURE - Step 1

  4. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/ Lane Departure Alert System)
    1. Disconnect the connector.

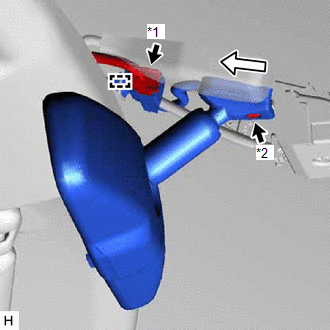

      GTY496165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Connector
      *2 Screw
    2. Detach the clamp.
    3. Using a T20 "TORX" socket wrench, remove the screw.
    4. Slide the inner rear view mirror assembly in the direction indicated by the arrow shown in the illustration to remove the inner rear view mirror assembly.
