Components [09/2016 - 09/2017]
| Callout | Description | Callout | Description |
| *1 | DECK BOARD ASSEMBLY | *2 | DECK FLOOR BOX LH |
| *3 | NO. 3 DECK BOARD SUB-ASSEMBLY | *4 | REAR DECK FLOOR BOX |
| *5 | NEGATIVE AUXILIARY BATTERY TERMINAL | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
| *1 | DECK FLOOR BOX RH | *2 | NO. 1 TOOL BOX SUB-ASSEMBLY |
| *3 | NO. 2 DECK BOARD SUB-ASSEMBLY | *4 | NO. 2 TOOL BOX SUB-ASSEMBLY |
| *5 | REAR FLOOR FINISH PLATE | *6 | SPARE TIRE |
| *7 | TONNEAU COVER ASSEMBLY | - | - |

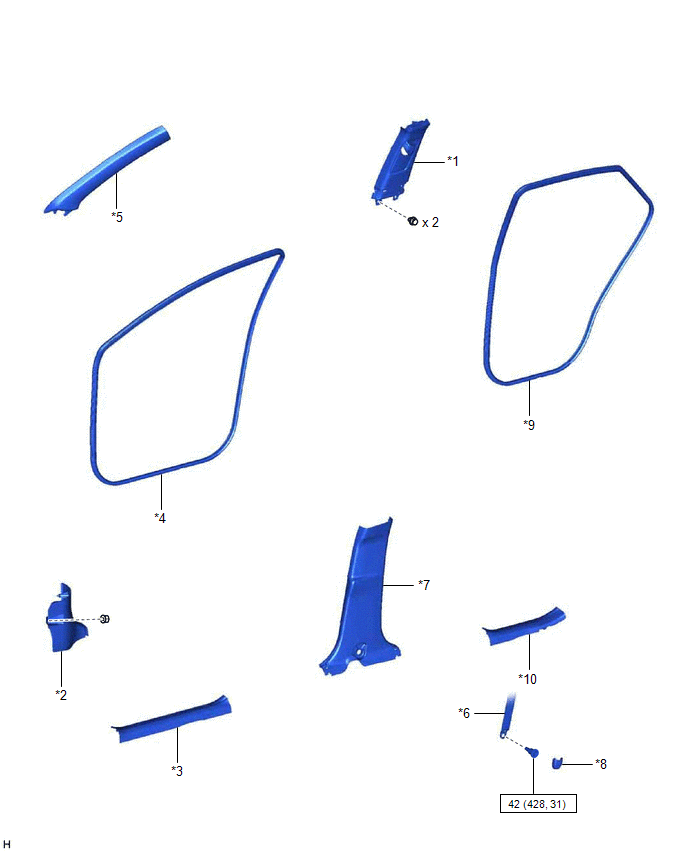

| Callout | Description | Callout | Description |
| *1 | CENTER PILLAR GARNISH ASSEMBLY LH | *2 | COWL SIDE TRIM BOARD LH |
| *3 | DOOR SCUFF PLATE ASSEMBLY LH | *4 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH |
| *5 | FRONT PILLAR GARNISH ASSEMBLY LH | *6 | FRONT SEAT OUTER BELT ASSEMBLY LH |
| *7 | LOWER CENTER PILLAR GARNISH LH | *8 | OUTER LAP BELT ANCHOR COVER |
| *9 | REAR DOOR OPENING TRIM WEATHERSTRIP LH | *10 | REAR DOOR SCUFF PLATE LH |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

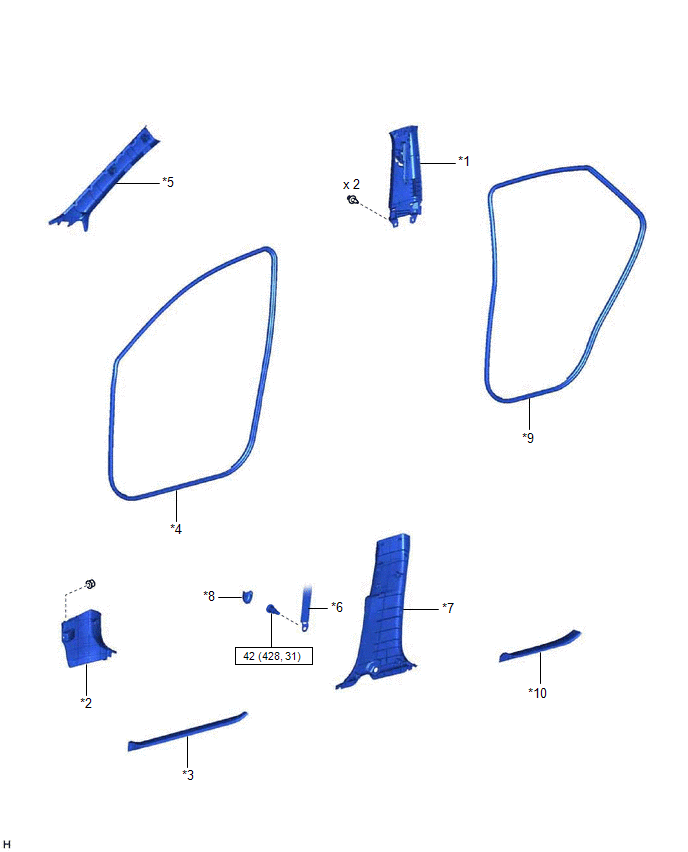

| Callout | Description | Callout | Description |
| *1 | CENTER PILLAR GARNISH ASSEMBLY RH | *2 | COWL SIDE TRIM BOARD RH |
| *3 | DOOR SCUFF PLATE ASSEMBLY RH | *4 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
| *5 | FRONT PILLAR GARNISH ASSEMBLY RH | *6 | FRONT SEAT OUTER BELT ASSEMBLY RH |
| *7 | LOWER CENTER PILLAR GARNISH RH | *8 | OUTER LAP BELT ANCHOR COVER |
| *9 | REAR DOOR OPENING TRIM WEATHERSTRIP RH | *10 | REAR DOOR SCUFF PLATE RH |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

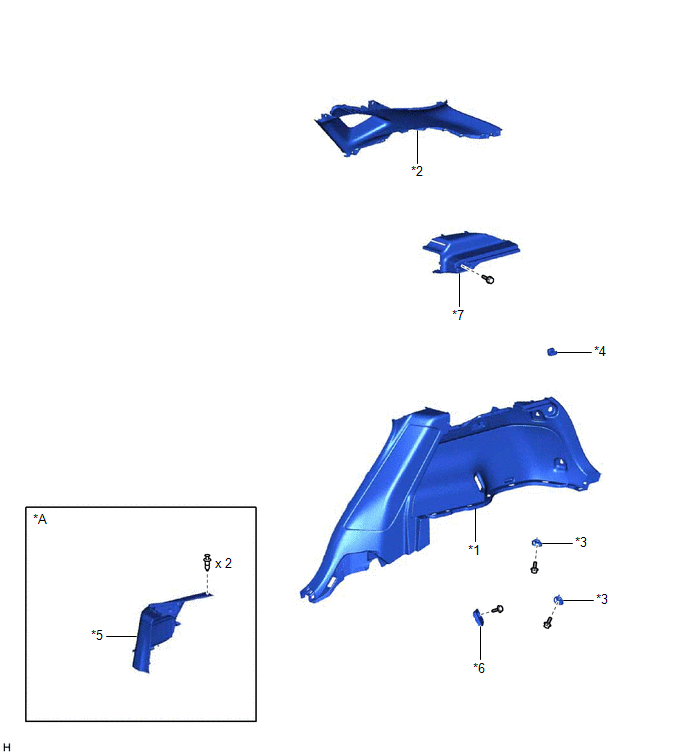

| *A | for Power Seat | - | - |
| *1 | DECK TRIM SIDE PANEL ASSEMBLY LH | *2 | INNER ROOF SIDE GARNISH ASSEMBLY LH |
| *3 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | *4 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK |
| *5 | NO. 3 BATTERY SERVICE COVER BOARD | *6 | ROPE HOOK ASSEMBLY |
| *7 | UPPER DECK TRIM SIDE BOARD LH | - | - |

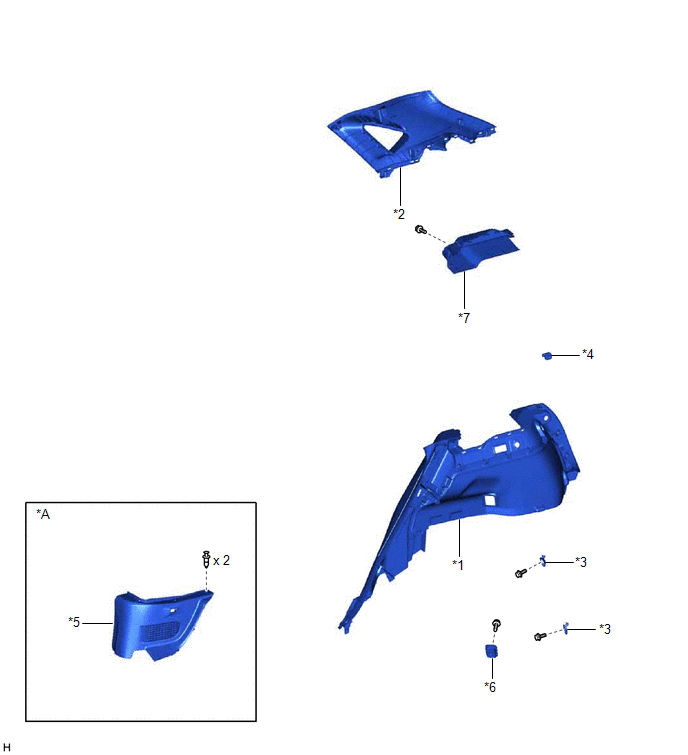

| *A | for Power Seat | - | - |
| *1 | DECK TRIM SIDE PANEL ASSEMBLY RH | *2 | INNER ROOF SIDE GARNISH ASSEMBLY RH |
| *3 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | *4 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK |
| *5 | NO. 2 BATTERY SERVICE COVER BOARD | *6 | ROPE HOOK ASSEMBLY |
| *7 | UPPER DECK TRIM SIDE BOARD RH | - | - |

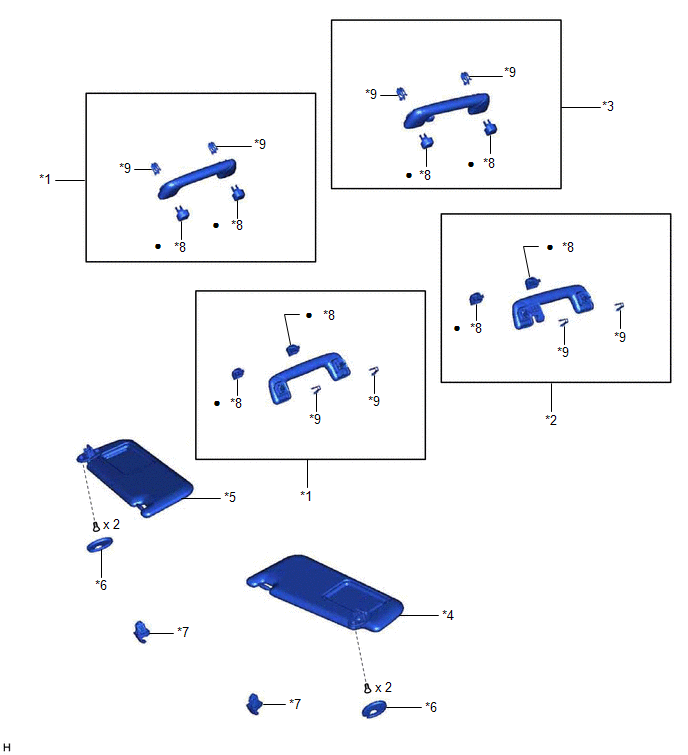

| *1 | ASSIST GRIP SUB-ASSEMBLY | *2 | REAR ASSIST GRIP ASSEMBLY LH |
| *3 | REAR ASSIST GRIP ASSEMBLY RH | *4 | VISOR ASSEMBLY LH |
| *5 | VISOR ASSEMBLY RH | *6 | VISOR BRACKET COVER |
| *7 | VISOR HOLDER | *8 | ASSIST GRIP COVER |
| *9 | CLIP | - | - |
| • | Non-reusable part | - | - |

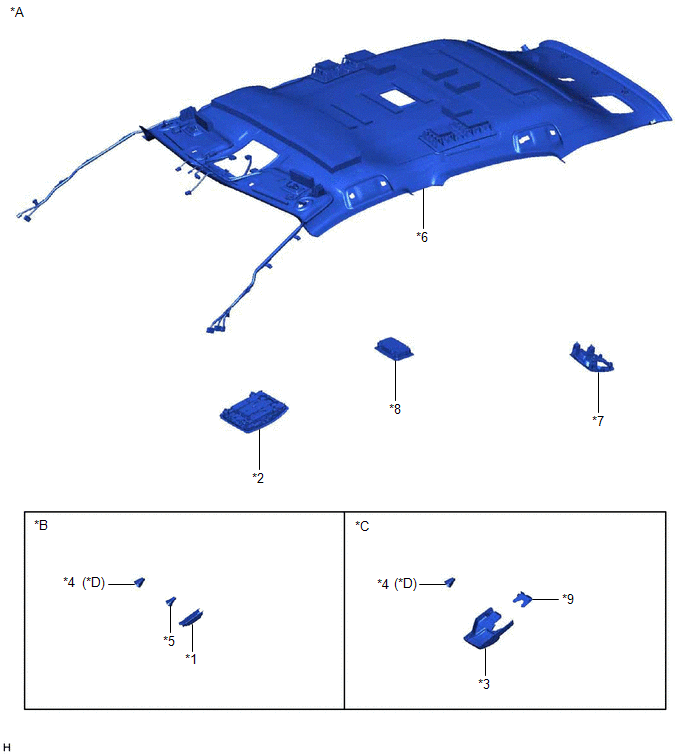

| *A | for Normal Roof | *B | w/o Lane Departure Alert System |
| *C | w/ Lane Departure Alert System | *D | w/ Humidity Sensor |
| *1 | INNER REAR VIEW MIRROR STAY HOLDER COVER | *2 | MAP LIGHT ASSEMBLY |
| *3 | NO. 1 LANE RECOGNITION COVER | *4 | PROTECTOR |
| *5 | RAIN SENSOR COVER | *6 | ROOF HEADLINING ASSEMBLY |
| *7 | SEAT BELT ANCHOR COVER | *8 | SPOT LIGHT ASSEMBLY |
| *9 | NO. 2 LANE RECOGNITION COVER | - | - |

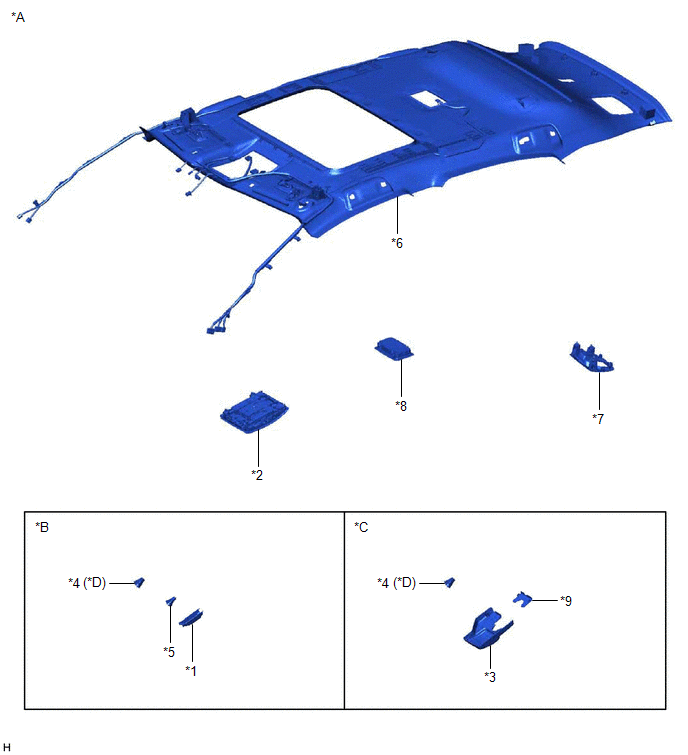

| *A | for Sliding Roof | *B | w/o Lane Departure Alert System |
| *C | w/ Lane Departure Alert System | *D | w/ Humidity Sensor |
| *1 | INNER REAR VIEW MIRROR STAY HOLDER COVER | *2 | MAP LIGHT ASSEMBLY |
| *3 | NO. 1 LANE RECOGNITION COVER | *4 | PROTECTOR |
| *5 | RAIN SENSOR COVER | *6 | ROOF HEADLINING ASSEMBLY |
| *7 | SEAT BELT ANCHOR COVER | *8 | SPOT LIGHT ASSEMBLY |
| *9 | NO. 2 LANE RECOGNITION COVER | - | - |
| Callout | Description | Callout | Description |
| *1 | CURTAIN SHIELD AIRBAG ASSEMBLY LH | *2 | CURTAIN SHIELD AIRBAG ASSEMBLY RH |
| *3 | FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH | *4 | FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY RH |
| *5 | REAR NO. 2 SIDE RAIL SPACER LH | *6 | REAR NO. 2 SIDE RAIL SPACER RH |
| *7 | REAR SIDE RAIL SPACER LH | *8 | REAR SIDE RAIL SPACER RH |
| *9 | CLIP | *10 | PIN |
| *11 | CURTAIN SHIIELD AIRBAG SPACER | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
| *A | for Normal Roof | - | - |
| *1 | CHILD RESTRAINT SEAT TETHER ANCHOR COVER | *2 | FRONT ROOF HEADLINING SIDE PAD |
| *3 | NO. 1 ROOF SILENCER PAD | *4 | NO. 1 ROOF WIRE |
| *5 | NO. 2 ANTENNA CORD SUB-ASSEMBLY | *6 | NO. 2 ROOF HEADLINING SUPPORT |
| *7 | NO. 2 ROOF SILENCER PAD | *8 | NO. 3 ROOF HEADLINING SUPPORT |
| *9 | NO. 3 ROOF SILENCER PAD | *10 | NO. 4 ROOF HEADLINING SUPPORT |
| *11 | NO. 4 ROOF SILENCER PAD | *12 | REAR ROOF SILENCER PAD |
| *13 | ROOF HEADLINING END PAD | *14 | ROOF HEADLINING PAD |
| *15 | ROOF HEADLINING SUPPORT | *16 | VANITY LIGHT ASSEMBLY |

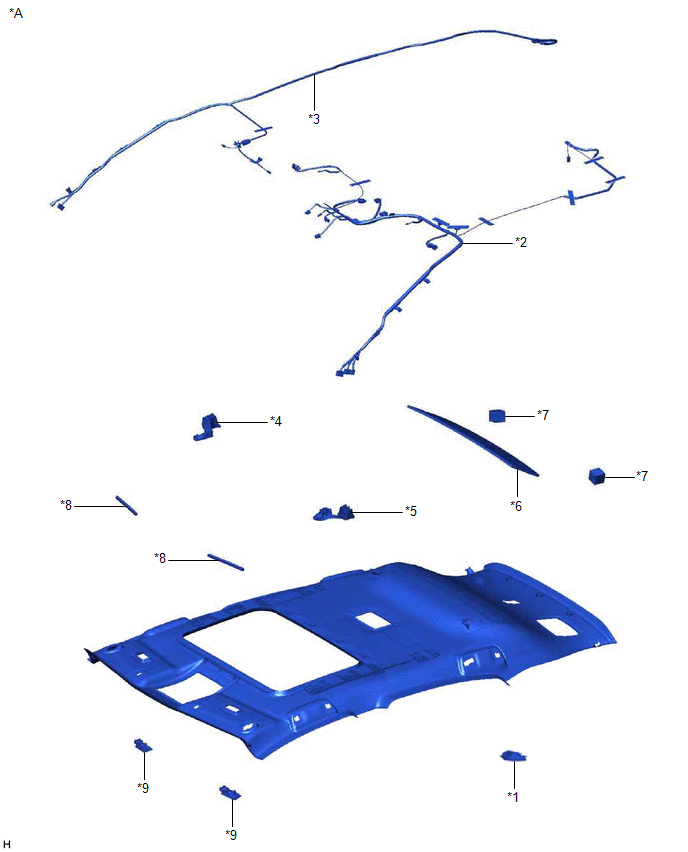

| *A | for Sliding Roof | - | - |
| *1 | CHILD RESTRAINT SEAT TETHER ANCHOR COVER | *2 | NO. 1 ROOF WIRE |
| *3 | NO. 2 ANTENNA CORD SUB-ASSEMBLY | *4 | NO. 3 ROOF HEADLINING SUPPORT |
| *5 | NO. 4 ROOF HEADLINING SUPPORT | *6 | REAR ROOF SILENCER PAD |
| *7 | ROOF HEADLINING END PAD | *8 | ROOF HEADLINING PAD |
| *9 | VANITY LIGHT ASSEMBLY | - | - |
