Microphone Circuit between Microphone and Radio Receiver [10/2014 - 09/2017]: Wiring Diagram

  1. w/o Manual (SOS) Switch
    GTY512027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

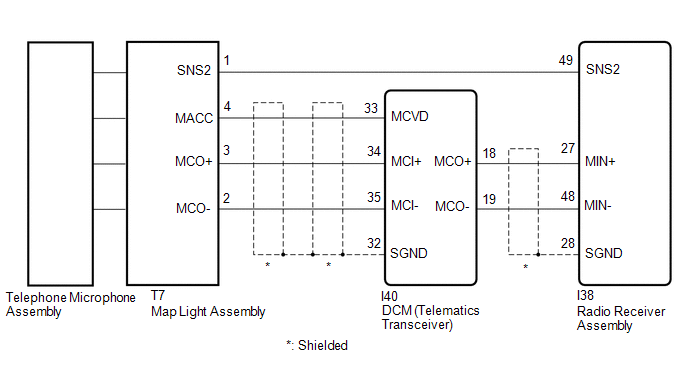

  2. w/ Manual (SOS) Switch
    GTY504246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
