Components [09/2017 - ]

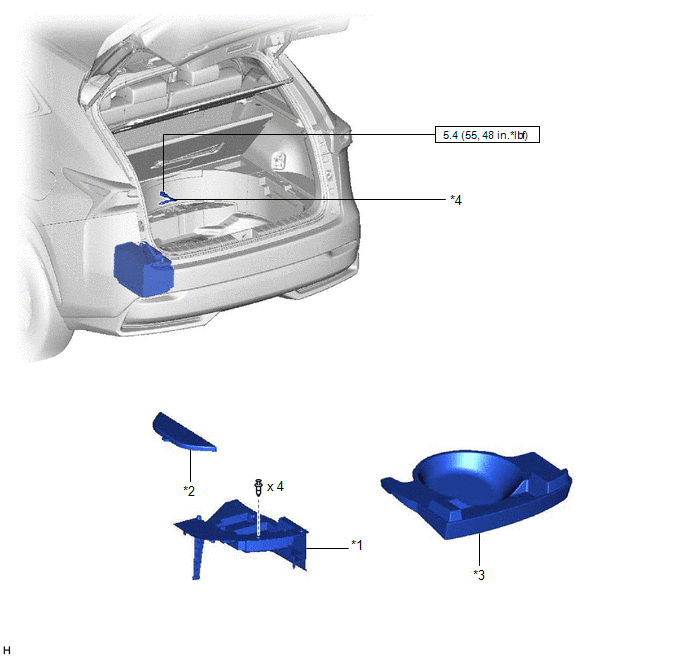

Fig 1: Headup Display Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	DECK FLOOR BOX LH	*2	NO. 3 DECK BOARD SUB-ASSEMBLY
*3	REAR DECK FLOOR BOX	*4	NEGATIVE AUXILIARY BATTERY TERMINAL
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

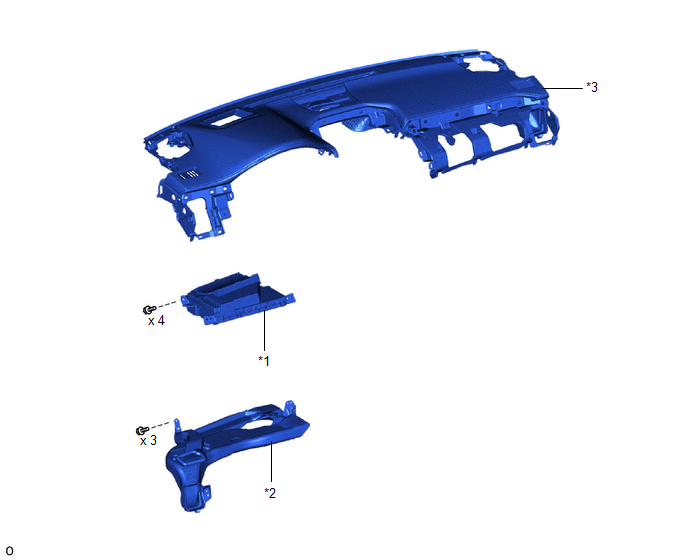

Fig 2: Headup Display Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	METER MIRROR SUB-ASSEMBLY (HEADUP DISPLAY)	*2	NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY
*3	UPPER INSTRUMENT PANEL SUB-ASSEMBLY	-	-

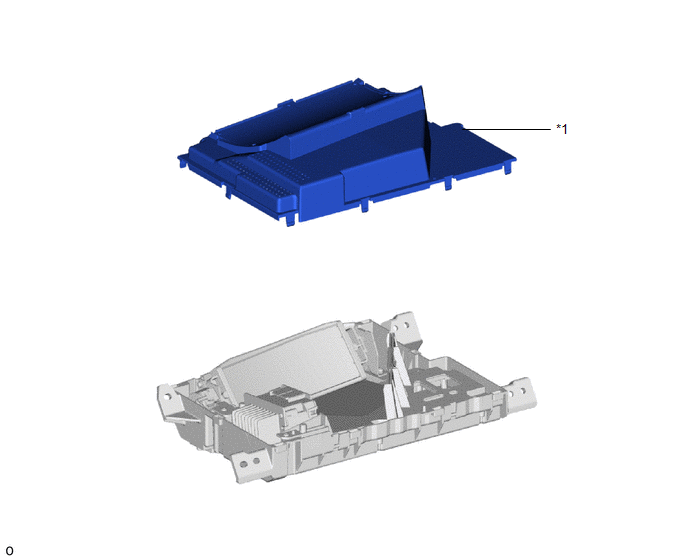

Fig 3: Headup Display Replacement Components (3 Of 3)

NO. 1 COMBINATION METER MIRROR PLATE
