Components [09/2015 - 09/2017]

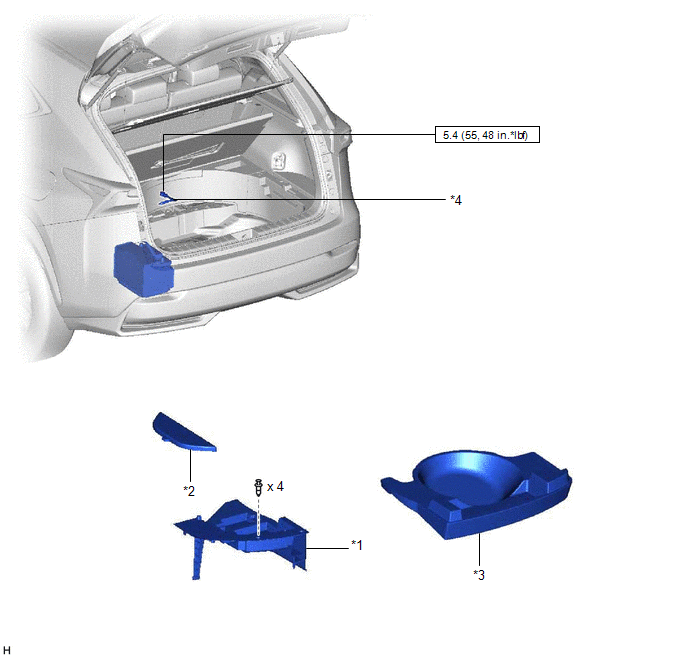

Fig 1: Headup Display Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DECK FLOOR BOX LH	*2	NO. 3 DECK BOARD SUB-ASSEMBLY
*3	REAR DECK FLOOR BOX	*4	NEGATIVE AUXILIARY BATTERY TERMINAL
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

Fig 2: Headup Display Replacement Components (2 Of 2)

*1	COMBINATION METER MIRROR ECU (HEADUP DISPLAY)	*2	NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY
*3	UPPER INSTRUMENT PANEL SUB-ASSEMBLY	-	-
