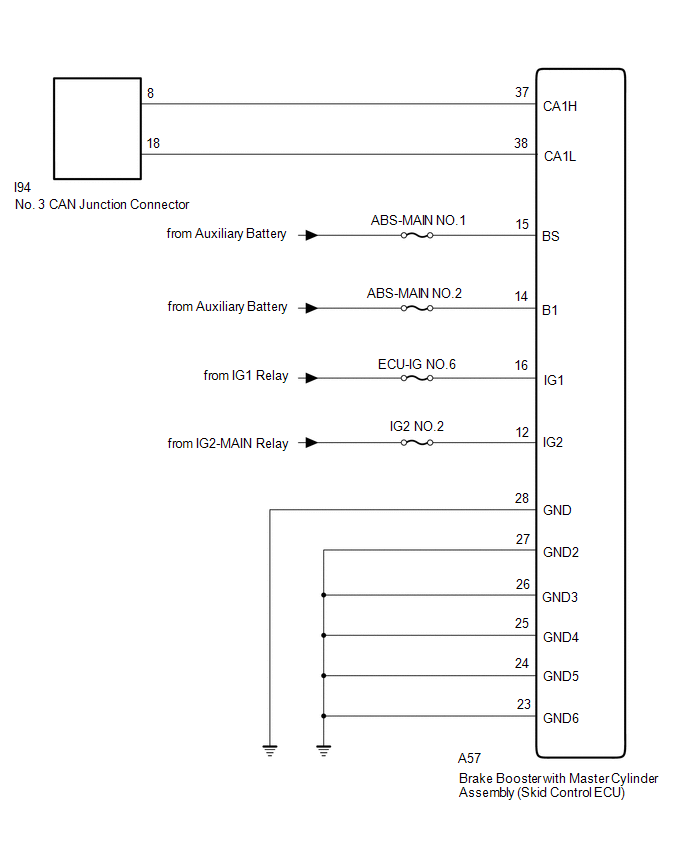

Skid Control ECU Communication Stop Mode [10/2014 - 09/2017]: Wiring Diagram

GTY514532

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
