Main Body ECU Communication Stop Mode [05/2019 - ]: Procedure

1. Disconnect the cable from the negative (-) auxiliary battery terminal.
2. Disconnect the main body ECU (multiplex network body ECU) connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Main Body ECU [Multiplex Network Body ECU])

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   I48-14 (CANH) - I48-13 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR

Result:

OK

See step  2

1. Reconnect the cable to the negative (-) auxiliary battery terminal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component without harness connected (Instrument Panel Junction Block Assembly)

2. Remove the instrument panel junction block assembly.

   Refer to REMOVAL [05/2019 - ]

3. reconnect the instrument panel junction block assembly connectors.
4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   A-30 (ACC) - Body ground	Power switch on (ACC)	11 to 14 V
   	Power switch off	Below 1 V
   A-31 (BECU) - Body ground	Power switch off	11 to 14 V
   A-32 (IG) - Body ground	Power switch on (IG)	11 to 14 V
   	Power switch off	Below 1 V

5. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A-11 (GND1) - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [05/2019 - ]

Result:

NG

See step  3

1. Disconnect the instrument panel junction block assembly connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

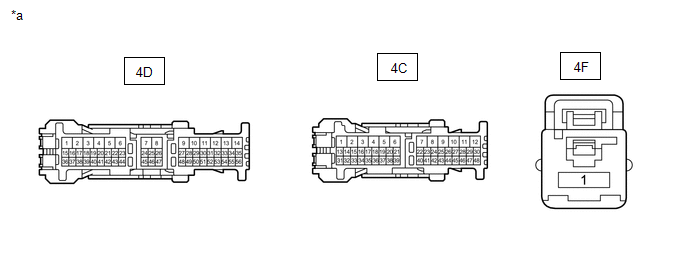

   Front view of wire harness connector (to Instrument Panel Junction Block Assembly)

   -

   -

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   4D-49 - Body ground	Power switch off	11 to 14 V
   4F-1 - Body ground	Power switch off	11 to 14 V
   4C-28 - Body ground	Power switch on (ACC)	11 to 14 V
   	Power switch off	Below 1 V
   4C-44 - Body ground	Power switch on (IG)	11 to 14 V
   	Power switch off	Below 1 V

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   4D-9 - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [05/2019 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
