Electric Parking Brake ECU Communication Stop Mode [10/2014 - 09/2017]: Procedure

1. Disconnect the cable from the negative (-) auxiliary battery terminal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Parking Brake ECU Assembly)

2. Disconnect the parking brake ECU assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   Q24-11 (CANH) - Q24-1 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR (PARKING BRAKE ECU ASSEMBLY)

Result:

OK

See step  2

1. Reconnect the cable to the negative (-) auxiliary battery terminal.
   NOTE:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

   Refer to INITIALIZATION [10/2014 - 09/2017]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

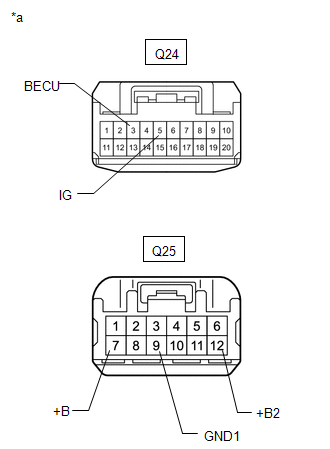

   *a	Front view of wire harness connector (to Parking Brake ECU Assembly)

2. Disconnect the parking brake ECU assembly connector.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   Q25-7 (+B) - Body ground	Power switch off	11 to 14 V
   Q25-12 (+B2) - Body ground	Power switch off	11 to 14 V
   Q24-5 (IG) - Body ground	Power switch on (IG)	11 to 14 V
   Q24-3 (BECU) - Body ground	Power switch off	11 to 14 V

4. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   Q25-9 (GND1) - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE PARKING BRAKE ECU ASSEMBLY. Refer to  REMOVAL [10/2014 - 05/2019]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
