ECM Communication Stop Mode [10/2014 - 09/2017]: Procedure

  1. CHECK FOR OPEN IN CAN BUS WIRE (ECM MAIN WIRE)
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
      GTY517960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to ECM)
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A35-13 (CANH) - A35-26 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (ECM)

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (ECM - BATTERY AND BODY GROUND)
    1. Reconnect the cable to the negative (-) auxiliary battery terminal.
      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

      Refer to INITIALIZATION [10/2014 - 09/2017]

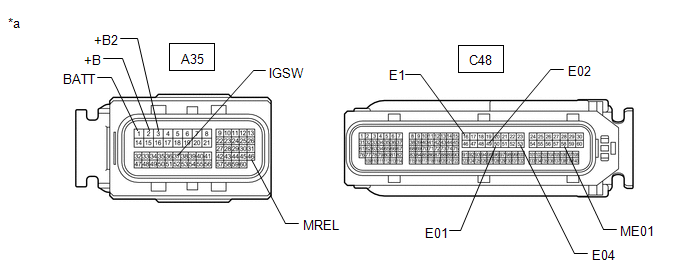

      GTY496315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to ECM)
      - -
    2. Disconnect the ECM connector.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      A35-1 (BATT) - Body ground Power switch off 11 to 14 V
      A35-2 (+B) - Body ground Auxiliary battery voltage applied to terminal A35-46 (MREL) 11 to 14 V
      A35-3 (+B2) - Body ground Auxiliary battery voltage applied to terminal A35-46 (MREL) 11 to 14 V
      A35-37 (IGSW) - Body ground Power switch on (IG) 11 to 14 V
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C48-16 (E1) - Body ground Always Below 1 Ω
      C48-49 (E02) - Body ground Always Below 1 Ω
      C48-50 (E01) - Body ground Always Below 1 Ω
      C48-58 (ME01) - Body ground Always Below 1 Ω
      C48-53 (E04) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [10/2014 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
