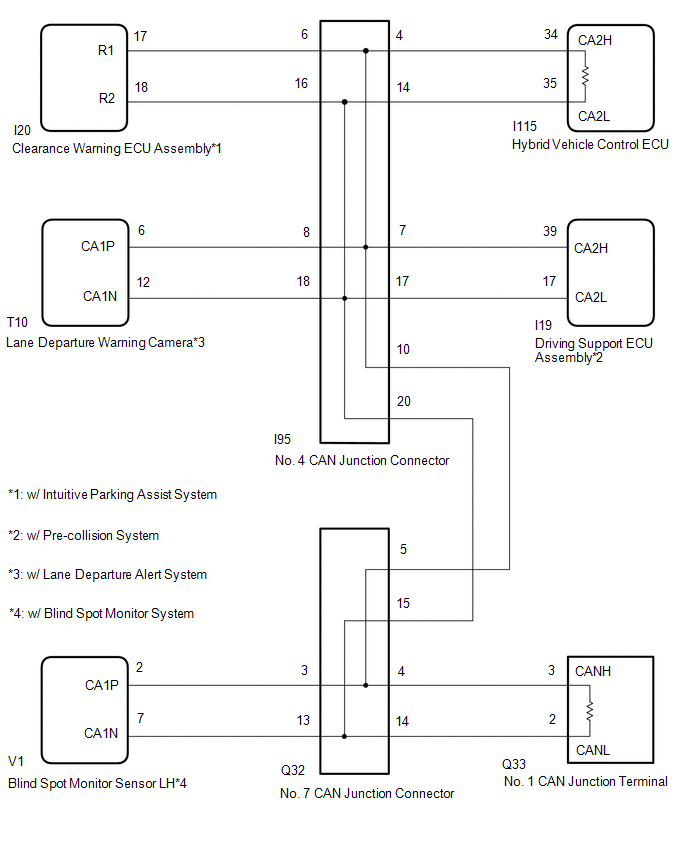

DTC U1002: Lost Communication with Gateway Module [10/2014 - 09/2017]: Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Refer to hybrid vehicle control ECU power source circuit.

Refer to Hybrid Vehicle Control ECU Communication Stop Mode [10/2014 - 09/2017]
